About Chain Link Conveyor Belt
The light belts of the wire mesh belt consist of belt segments linked with splicing rods. The individual elements consist of alternating right and left-hand round wire spirals in a flat oval or round form. The edges of the wire mesh belt are available in a welded or bent design.
Different from balanced weave belt consisting of alternating left-hand and right-hand spiral coils chain link conveyor belting is constructed by unidirectional coils. For a friction driven belt, the belt features alternating sections of left-hand then right-hand. To counteract the tracking issues caused by the unidirectional coil pattern, cross rods are inserted across the belts – one is right-hand woven and the other is right-hand woven.
Features of Chain Link Conveyor Belt
• Simple structure. It is made of several spiral coils. Suitable for light-duty use in drying and cooling applications
• Economical. Economic and lightweight solution for low load conveying applications. The simple structure make it economical than other types of conveyor belt.

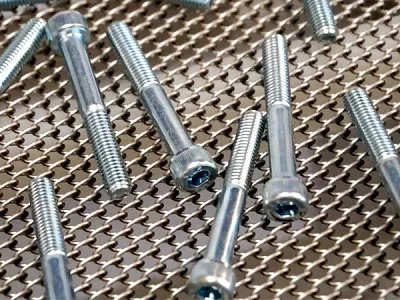

• Functional. The stainless steel chain link conveyor belt is suitable for lifting, conveying lightweight products.
• Different edge. We can supply welded or knuckled edge for your choice.

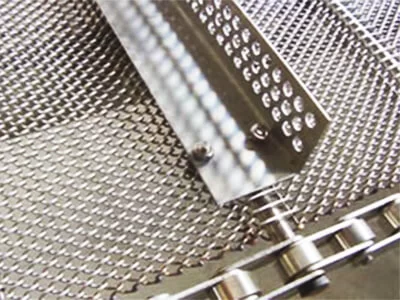

• Baffles are available. Side and center baffles can be added to the conveyor belt. Baffles can prevent the products from falling down to the ground. It is also useful for sorting and conveying.
• Chain link drive. The chain link drive pattern can ensure the smooth and high efficient working.
Belt Types

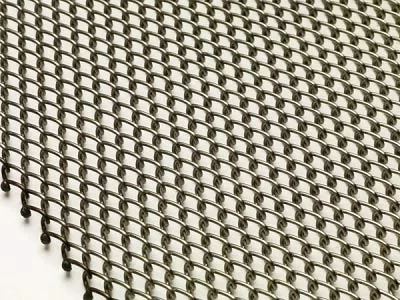

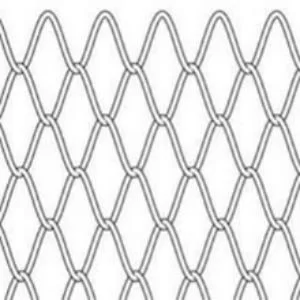

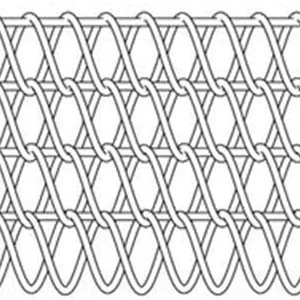

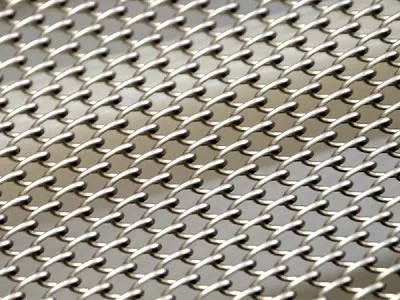

Chain Link Belt Without Rod Reinforced

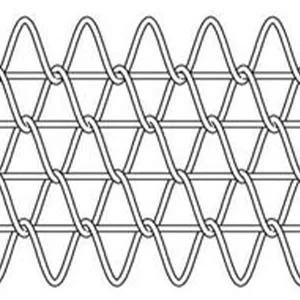

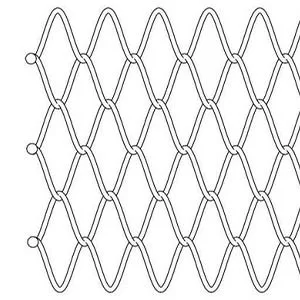

Chain Link Belt With Rod Reinforced
Rod reinforced chain link belt are more stronger than conventional chain link belt as a result of the cross rods through the interconnecting spiral wires. Not only does the rods add strength to the belt, but also make the belt stable during conveying.
Chain Duplex Link Belt With Rod Reinforced
Apart from the standard rod reinforced chain link belt, there is also duplex Link Belt With Rod Reinforced, which has double interwoven spiral wires. This duplex version chain belt has smaller open area and more strength. Compared with universal chain link belt, rod reinforced chain link belt has wider applications because of its relatively heavy load ability, open area and economical cost.
Edge Availability
chain link conveyor belt are available in different edge styles including welded, knuckled and chained. Other special edge finish is available on request.
Welded Edge
At the belt edges the coil wires are looped together and welded. This is the most common and economical edge finish. This type of edge finish allows for relatively smooth finish to the belt edge and is the most economic version of this belt style.
Knuckled Edge
The end of each coil wire is bent back into a ‘U’ shape and then interlock with the adjacent coil. The ‘U’ form is then closed securely to form a permanent link with the next coil. This formation also allows greater flexibility of the belt edges and minimises stress build up at these positions.

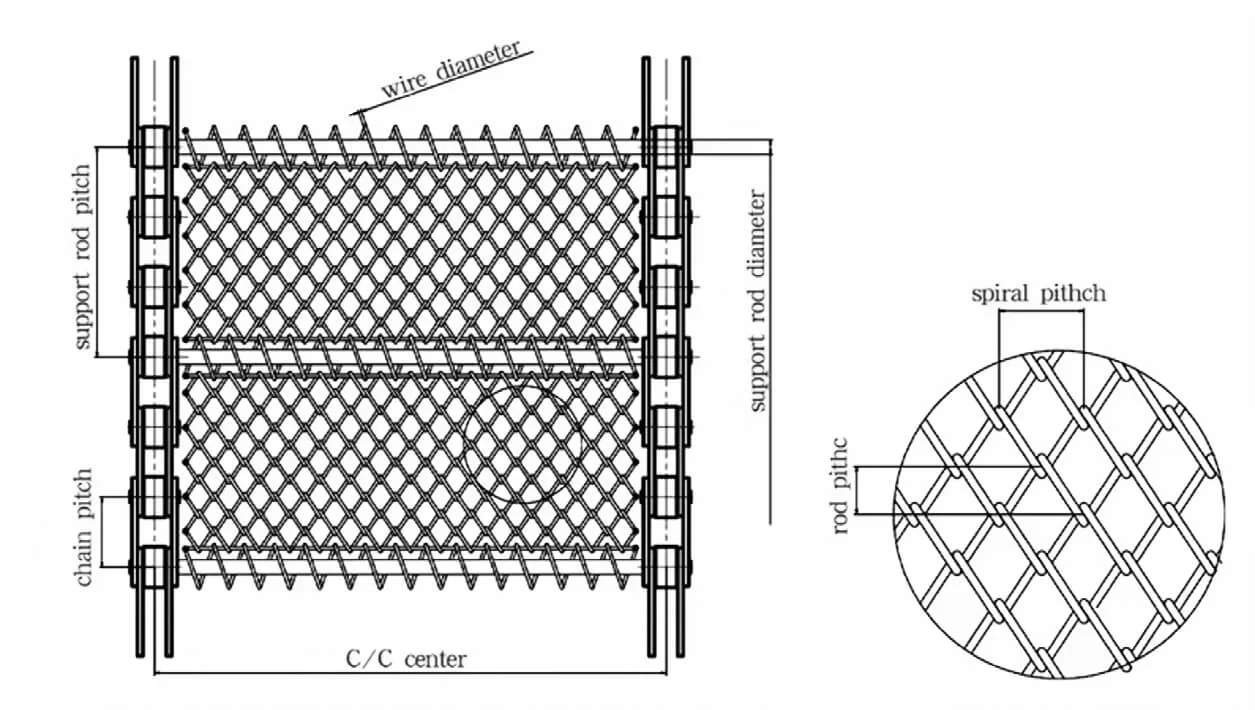

Chain Edge

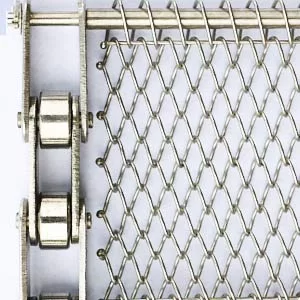

Along with the mesh edge finishes these meshes can be driven by side chains using cross rods which are located through the mesh coils and then through chains at the edges of the mesh.
Material Availability
Material | Maximum Wire Operating Temperature °C |
Carbon Steel | 550 |
Galvanised Mild Steel | 400 |
Chrome Molybdenum (3% Chrome) | 700 |
304 Stainless Steel | 750 |
321 Stainless Steel | 750 |
316 Stainless Steel | 800 |
316L Stainless Steel | 800 |
314 Stainless Steel | 1120 |
37/18 Nickel Chrome | 1120 |
80/20 Nickel Chrome | 1150 |
Inconel 600 | 1150 |
Inconel 601 | 1150 |
Specifications
Specifications of Chain Link Belt Without Rod Reinforced
These are designed to suit the customer requirements but in general are available in lateral coil wire pitches varying from 5.08mm to 25.4mm, combined with a variety of wire diameters and longitudinal pitches to suit the application.

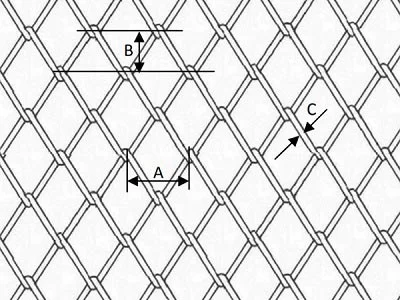

A: Lateral Coil Pitch (mm) B: Longitudinal Coil Pitch (mm) C: Wire Diameter (mm)
Specifications of Chain Link Belt With Rod Reinforced

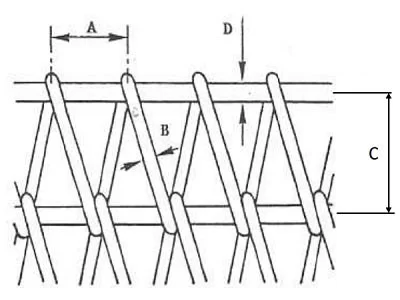

A: Lateral Coil Pitch (mm) B: Coil Wire Diameter (mm)
C: Longitudinal Cross Wire Pitch (mm) D: Cross Wire Diameter (mm)
Specifications of Chain Link Belt With Rod Reinforced | |||
Lateral Coil Pitch (mm) | Coil Wire Diameter (mm) | Longitudinal Cross Wire Pitch (mm) | Cross Wire Diameter (mm) |
16.93/15.24 | 2.03 | 16.93/19.05 | 2.64 |
2.64 | 2.95 | ||
2.95 | 3.25 | ||
3.25 | 4.06 | ||
NOTE: Custom specification is available if you can't find the suitable size. | |||
Specifications of Chain Duplex Link Belt With Rod Reinforced

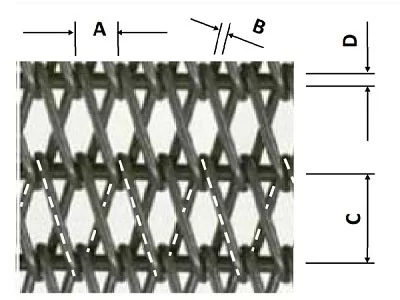

A: Lateral Coil Pitch (mm) B: Coil Wire Diameter (mm)
C: Longitudinal Cross Wire Pitch (mm) D: Cross Wire Diameter (mm)
Specifications of Chain Duplex Link Belt With Rod Reinforced | |||
Lateral Coil Pitch (mm) | Coil Wire Diameter (mm) | Longitudinal Cross Wire Pitch (mm) | Cross Wire Diameter (mm) |
8.47 | 2.03 | 16.93/19.05 | 2.64 |
2.64 | 2.95 | ||
2.95 | 3.25 | ||
3.25 | 4.06 | ||
5.08 | 2.03 | 10.16 | 2.64 |
NOTE: Custom specification is available if you can't find the suitable size. | |||

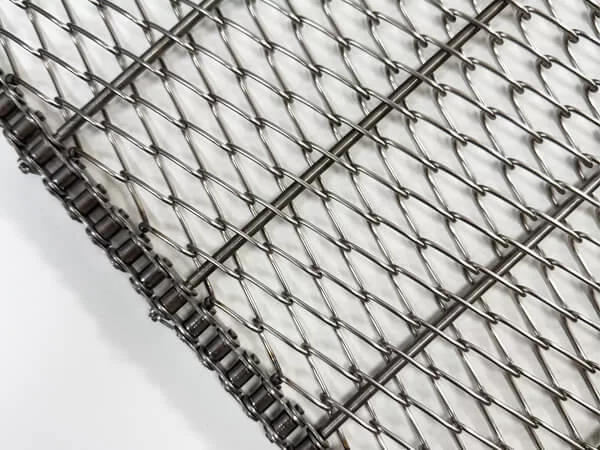

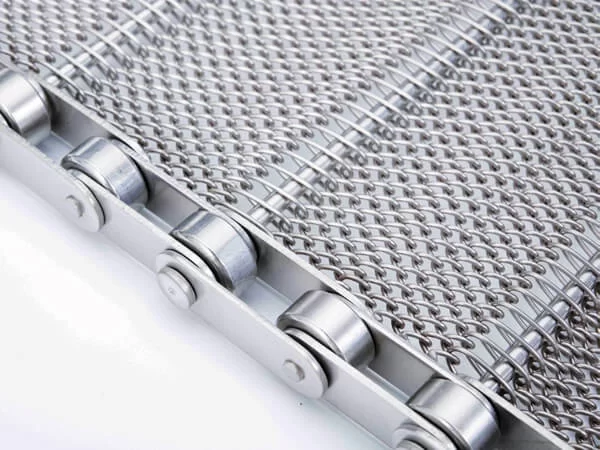

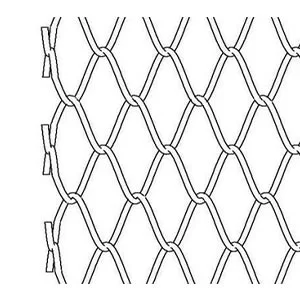

chain link conveyor belt with Chain Edge
Typical Applications
● Annealing furnaces
● Cleaning machines
● Conveyor machines
● Drying ovens
● Frosters
● Frying facilities
● Ovens
● Refrigeration facilities

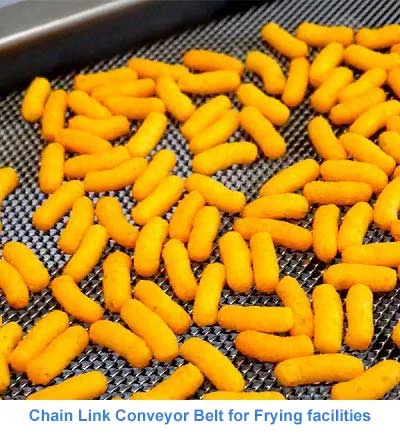

Chain Link Conveyor Belt for Frying facilities

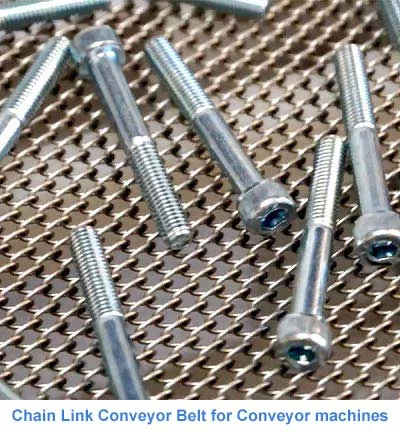

Chain Link Conveyor Belt for Conveyor machines
Furnace Curtains
Metal Mesh Curtain
-
Self-Stacking Spiral Freezer BeltsSelf-Stacking Spiral Freezer BeltsSelf-Stacking Spiral Freezer Belts are innovative conveyor solutions designed specifically for use in spiral freezers. With a unique stacking mechanism that eliminates the need for external support, these belts help maximize vertical space, reduce energy consumption, and improve overall freezing efficiency.
Engineered for high-performance food processing environments, these belts offer superior product handling, longer service life, and minimal maintenance — all while maintaining food quality and system hygiene.
-
Ladder Conveyor BeltsLadder Conveyor Belt is a simple but effective style of conveyor belt, generally used belt for common processes and common product loads. Its open design provides efficient operation with minimum maintenance as well as facilitating easy and thorough cleaning. Its lightweight and basic configuration make it a very economic and cost-effective style of belting for many different environments. The ladder belts are used in production processes with temperatures of -100ºC to +450ºC in food and other industries.
-
Rod Network Conveyor BeltsRod Network Conveyor Belts：Also known as Flat Flex Conveyor Belt.It is made of left and right spir……
-
Eye Link Conveyor BeltsEye Link Conveyor Belts, also named Wire Link Conveyor Belts, Eye-Flex Conveyor Belt, Wire Loop Belt. Eye link belts are produced of stainless steel or other alloys. They consist of a series of eye links or eye link modules. Joined with cross rods they form a flat, simple surface, which is extremely stable and durable. The qualities of this versatile conveyor belt form a combination of advantages that make it particularly suitable for the most demanding applications in the food, chemical, pharmaceutical and packaging industries.
-
Wire Mesh Lehr BeltsLehr Belts feature a balanced weave wire construction, composed of alternating right- and left-hand flattened spirals securely seated in crimped connector rods. The belt edges are welded to enhance durability and stability.
-
Flexible Rod Conveyor BeltsA Flexible Rod Belt is constructed from 3 components.
1. Alternating spirals take care of the belt overlay.
2. These spirals are connected to each other by means of smooth cross rods.
3. Special chain links are mounted at the outer sides, which are locked by means of button heads.
-
Chain LinksChains links are important components and accessories in the whole conveyor belt system. They are used combined with sprockets as a drive system to ensure stable and smooth conveying and transmitting. We can supply all kinds of chain links for you.
-
Compound Weave Conveyor BeltsCompound Weave Conveyor Belt, also named Stainless Steel Cordweave Conveyor Belt, Compound Balanced Woven Belt，V-shaped Conveyor Belt or Baking Band Conveyor Belt, have right-hand and left-hand spirals interconnecting by straight cross rods.
The compound belt is a high-density, balanced spiral belt with multiple spirals and cross rods per pitch, resulting in minimal apertures and a flat surface. This structure ensures a close and flat mesh, ideal for conveying very small items. Its uniform heat transfer and smooth surface make it perfect for applications like biscuit baking and sorting small mechanical components. Popular for its durability and efficiency, the compound weave is a top choice in various industries, including food processing and precision manufacturing.
-
