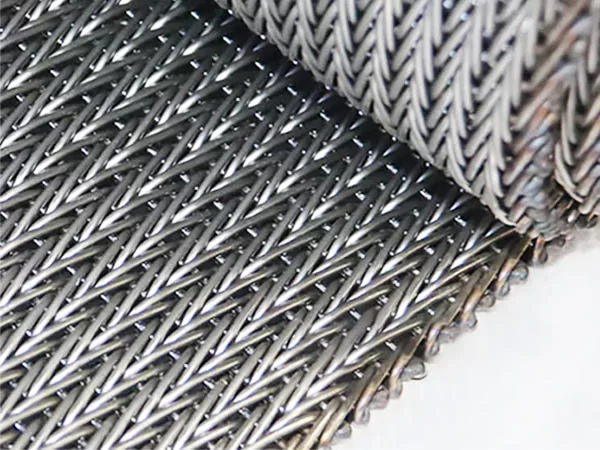

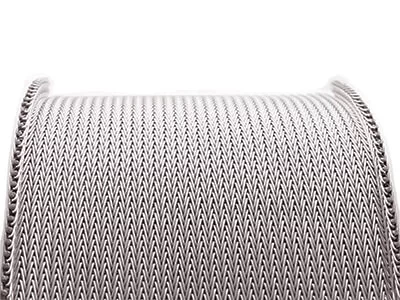

Compound Weave Conveyor Belts
Compound Weave Conveyor Belts
Contact Us Now >
Download
Materials and Applications
Generally, the material used to make the Compound Weave Conveyor Belts is stainless steel or high carbon steel.
Compound weave conveyor belts made from 304 and 316 stainless steel are typically used in the food industry due to their hygienic properties, while those made from 310S and 314 stainless steel are preferred in the heat treatment industry for their high temperature and oxidation resistance.
310S and 314 stainless steel wire offer high temperature resistance, strong oxidation resistance, and excellent mechanical properties. These features make mesh conveyor belts made from 310S and 314 stainless steel ideal for addressing high temperature issues in powder metallurgy furnaces. These belts resist short cycles, peeling, and fractures, and can withstand temperatures up to 1000-1250°C.
Driving Methods
The belt can be driven by friction rollers or chains. In some cases, products need to be upgraded or separated, and we can also provide cross flights and side plates according to user needs.
Features of Compound Weave Conveyor Belt
• Small open area. The compound weave conveyor belt has a little open area, which is suitable to conveyor the small items.
• Use multiple environments. High resistance against acid, alkaline, chemical, abrasion, and corrosion.
• High tensile strength. The compound weave conveyor belt has multiple spirals and cross rods on each pitch, so it can supply higher tensile strength than other types of conveyor belt.
• High-temperature resistance. The compound weave conveyor belt is made of high-quality materials, including stainless steel and nickel alloy steel, which have excellent temperature resistance performance.
• Durable and long service life. The unique structure and high-quality material can ensure the long service life of compound conveyor belt.
• Uniform heating. Provides uniform heat transfer across the belt.
• Baffles can be added. Different types of baffles can be added at the both side and center of conveyor belt for sorting and conveying products.
Belt Types

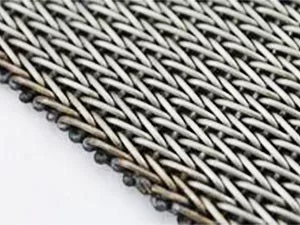

Round spiral wire compound weave conveyor belt
In this format both coil and cross wires are of round section.

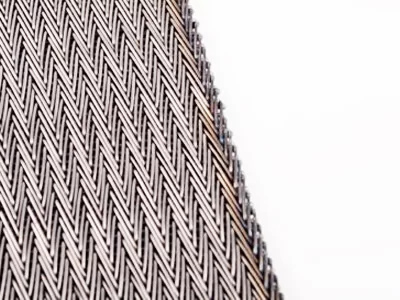

Flat spiral wire compound weave conveyor belt
In this format both coil and cross wires are of flat section. These styles are most useful to gain more surface area when handling small base area products.
Edge Availability
For the compound weave conveyor belt, we
can provide two different edge structures to meet different applications.

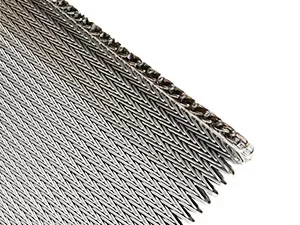

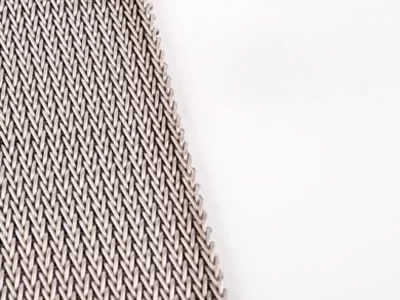

Compound weave conveyor belt with welded edge

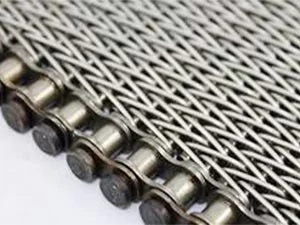

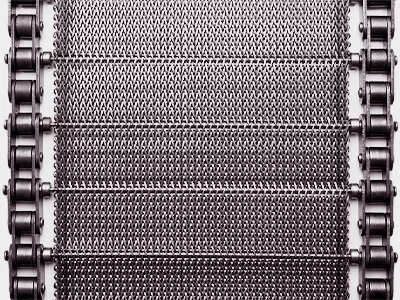

Compound weave conveyor belt with chain edge

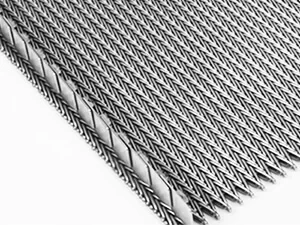

Compound weave conveyor belt with side guard edge
Compound weave conveyor belt with folded side guard edge
Material Availability
The compound weave conveyor belt is made of stainless steel and high carbon steel. They all have excellent high temperature resistance performance and high tensile strength. All these can ensure the compound weave conveyor belt be a strong, durable and high lifespan products.
Material | Maximum Wire Operating Temperature °C |
Carbon Steel | 550 |
304 Stainless Steel | 750 |
316 Stainless Steel | 800 |
316L Stainless Steel | 800 |
| 314 Stainless Steel | 1120 |
Inconel 600 | 1150 |
Specifications

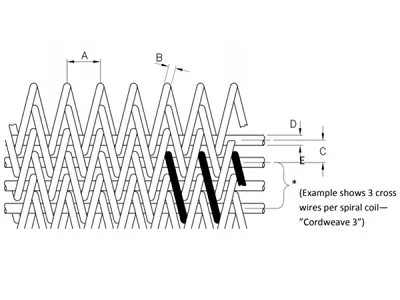

A: Coil Pitch (mm) C: Cross Wire Pitch (mm)
B: Coil Wire Diameter (mm) D: Cross Wire Diameter (mm)
E: Number of Cross Wires per Spiral Coil (mm)
Compound Weave Conveyor Belts specifications | |||||
Item |
Coil pitch |
Coil wire diameter |
Cross wire pitch |
Cross wire diameter |
Number of cross wires per spiral coil |
CWCB-01 | 5.08 | 1.22 | 3.05 | 1.22 | 3 |
CWCB-02 | 11.29 | 2.03 | 4.35 | 2.03 | 4 |
CWCB-03 | 10.16 | 2.03 | 5.08 | 2.64 | 4 |
CWCB-04 | 4.24 | 0.91 | 2.24 | 1.22 | 4 |
CWCB-05 | 8.47 | 1.63 | 3.63 | 1.63 | 4 |
CWCB-06 | 6.35 | 1.22 | 2.82 | 1.22 | 4 |
CWCB-07 | 8.71 | 1.6 × 1.3 | 3.9 | 1.63 | 5 |
NOTE: 1. If flat wire, please give us cross section. 2. Custom specification is available if you can't find the suitable size. | |||||
By offering a flat carrying surface with little open area, Compound Weave Conveyor Belt is a popular choice for applications as diverse as bottle-annealing to baking small snack products. Compound Weave Conveyor Belt is particularly popular in baking applications as its high-density construction ensures a uniform heat transfer through to the product.
●Rice Handling
●Swarf
Conveyors
●Heat Treating of Small Fasteners
●Furnace
Curtain
●Sintering of Powdered Metal Components
●Electro-Plating
●Accumulation Tables
●Seed Drying

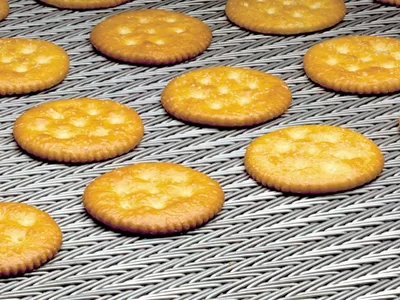

●Biscuits, tortillas, cookies and crackers baking
●Hardening, tempering, quenching
●Glass works
●Electrotechnical industry
●Serving as pasteurizing belt
●Furnace belts

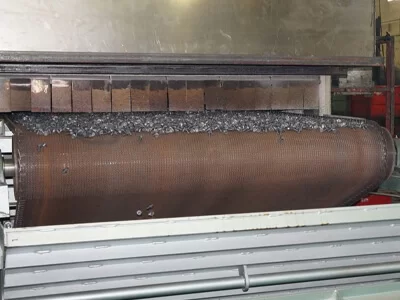

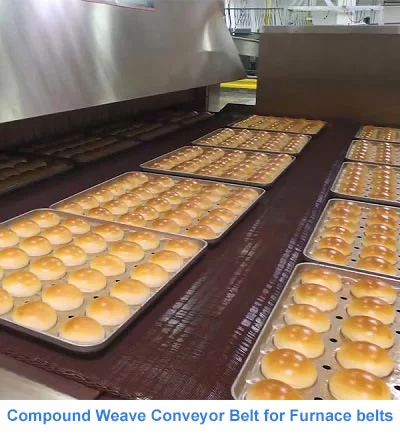

Compound Weave Conveyor Belt for Furnace belts

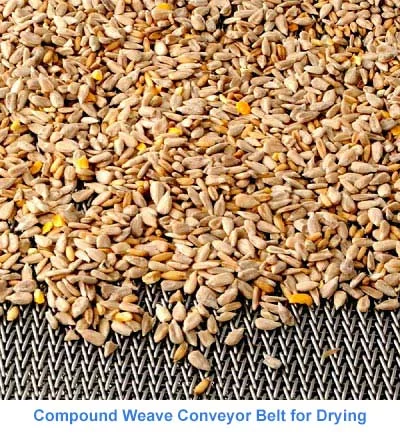

Compound Weave Conveyor Belt for Drying

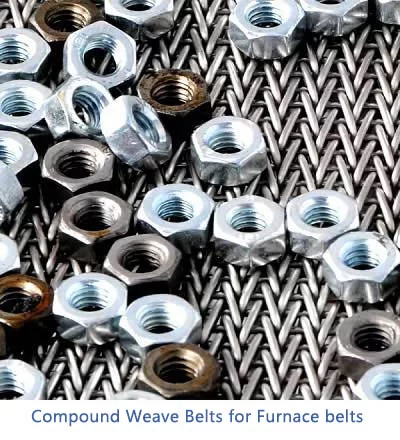

Compound Weave Belts for Furnace belts

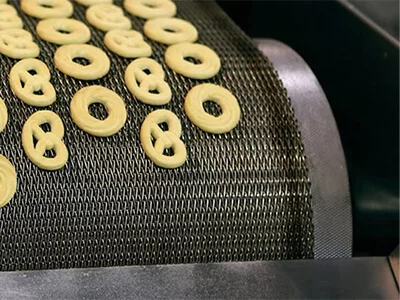

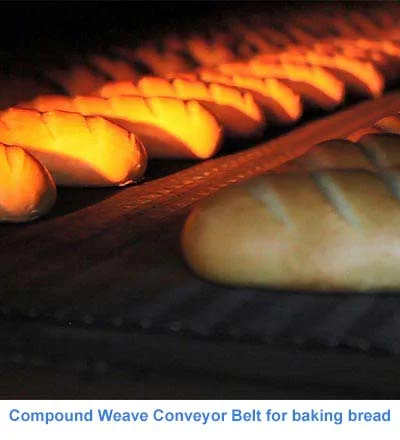

Compound Weave Conveyor Belt for baking bread

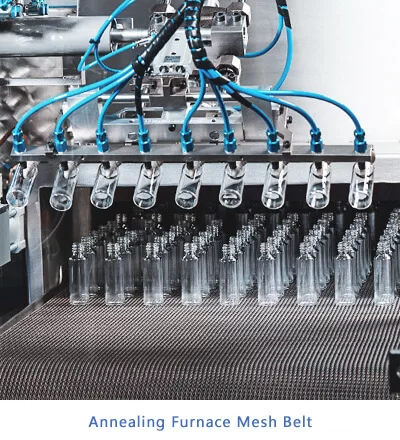

Annealing Furnace Mesh Belt

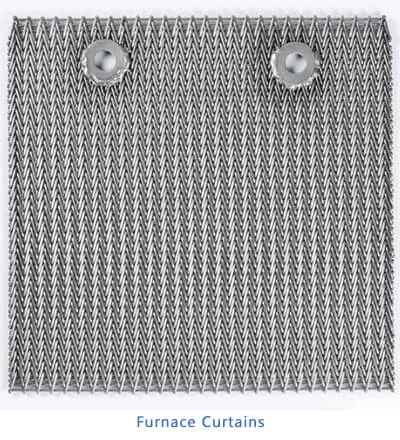

Furnace Curtains
-
