Honeycomb (Flat Wire) Conveyor Belts
Honeycomb (Flat Wire) Conveyor Belts
Contact Us Now >
Download
PFM Screen began manufacturing honeycomb conveyor belt in 1987, and they are still among the most versatile and most economical straight-running belts available.
Honeycomb conveyor belt is a perfect products with both durability and suitable open area. It is temperature resistance, which is popular in the baking conveying applications. The flat surface of honeycomb conveyor belt supplies stable conveying during using. Honeycomb belts are used in production processes with temperatures of -30ºC up to +400ºC in food and other industries.
Honeycomb conveyor belt Advantages:
• Twice the life of competitive belts
• Installation requires no special tools
• Positive driven for excellent belt tracking
• Up to 81% open area for excellent flow through
• Allows for tight transfers
• Available up to 150 inches wide
• High strength-to-weight ratio
• Welded button edge or clinched edge
• Flat carrying surface
• Easy to clean and to install
• Easily joined
• Strong edge reduces snagging or catching on conveyor protrusions
Edge Availability

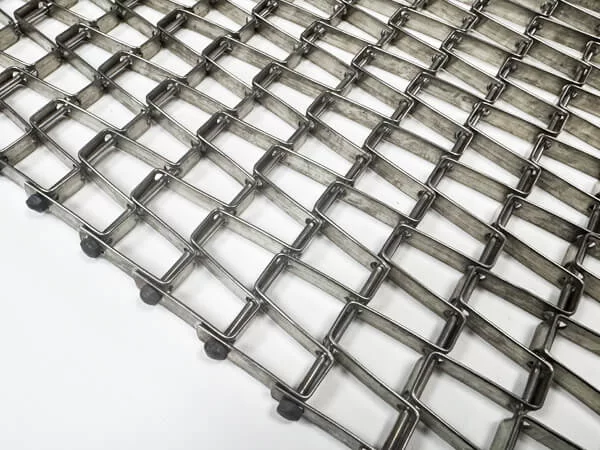

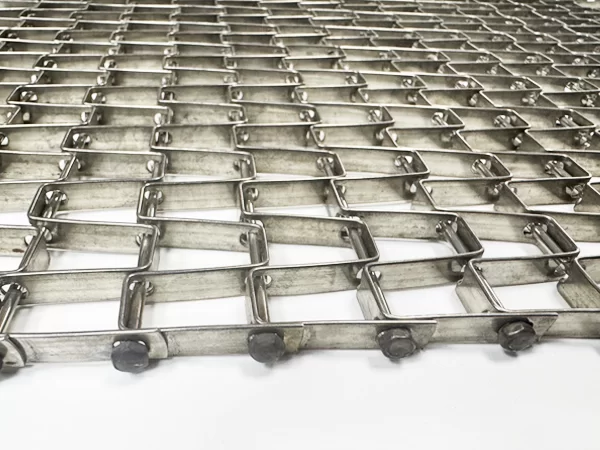

Honeycomb belt with welded edges

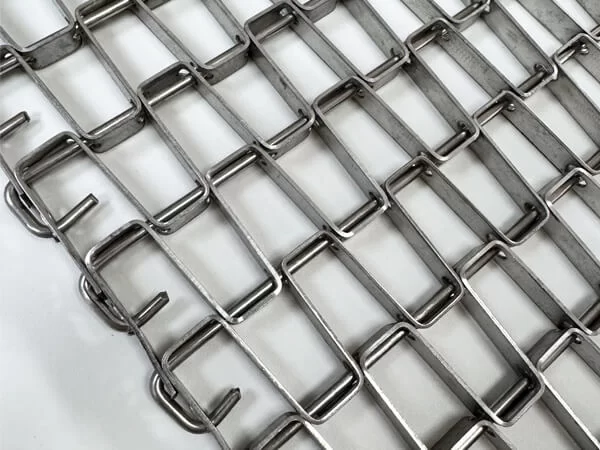

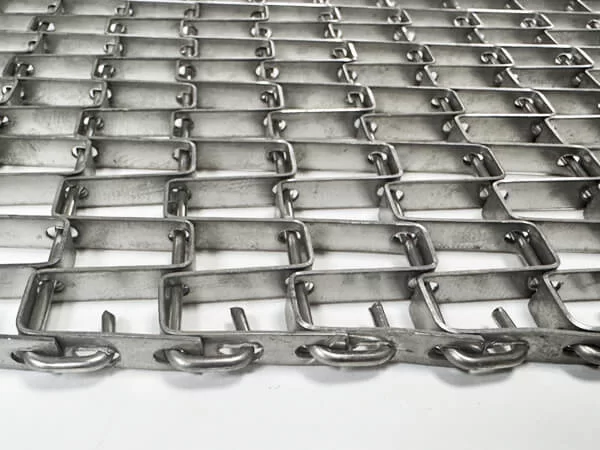

Honeycomb belt with clinged edges

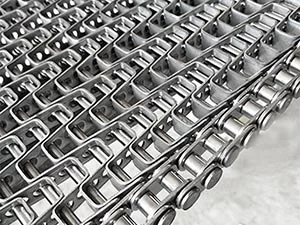

Honeycomb belt with Chain edges
Material Availability
The Honeycomb belts is standard made of mild steel, galvanised mild steel, stainless steel AISI 304 and AISI 316.The belt needs minimal maintenance and will have a working life of many years, if used well.
Specifications

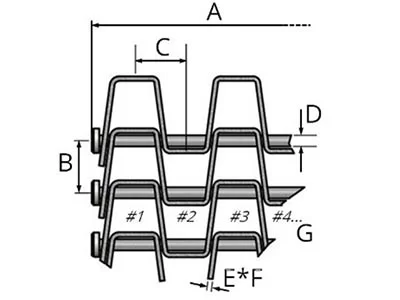

A: Overall Width (mm) B: Cross Rod Pitch (mm)
C: Nominal Lateral Pitch (mm) D: Cross Rod Diameter (mm)
E: Height of flat strip material (mm) F: Thickness of flat strip material (mm)
G: Number of Apertures Across Width (mm)
Specifications of honeycomb conveyor belt | ||||
Item No. | Cross Rod Pitch (mm) | Nominal Lateral Pitch (mm) | Flat Strip (mm) | Cross Rod (mm) |
H CB01 | 13.7 | 14.6 | 10×1 | 3 |
H CB02 | 26.2 | 15.55 | 12×1.2 | 4 |
H CB03 | 27.4 | 15.7 | 9.5×1.25 | 3 |
H CB04 | 27.4 | 24.7 | 9.5×1.25 | 3 |
H CB05 | 28.6 | 15 | 9.5×1.25 | 3 |
H CB06 | 28.6 | 26.25 | 9.5×1.25 | 3 |
H CB07 | 28.4 | 22.5 | 15×1.2 | 4 |
NOTE: Custom specification is available if you can't find the suitable size. | ||||
The Honeycomb belts, with high temperature resistance, large open area, flat surface is widely used in the following applications.
● Transport systems
● Heating systems
● Baking systems
● Cooling systems
● Washing systems

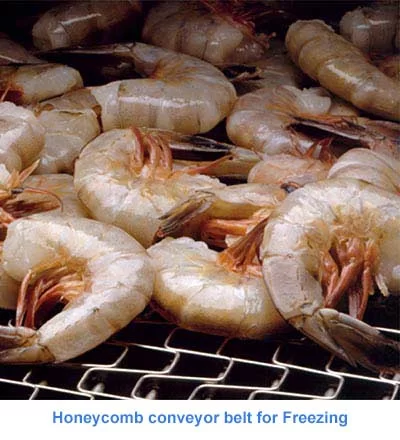

● Freezing systems

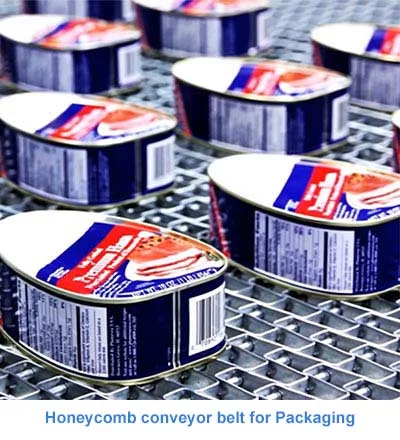

● Packaging systems
● Sorting systems
● Drying systems

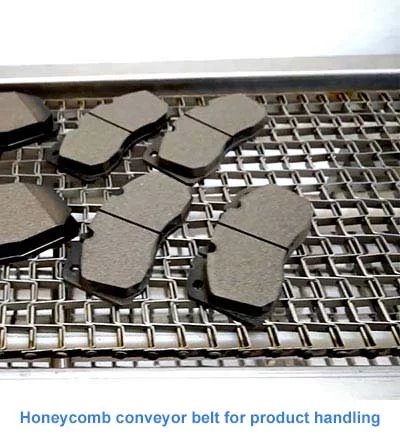

● Product handling systems
● Sieving systems
● Bread production systems
● Waste handling systems

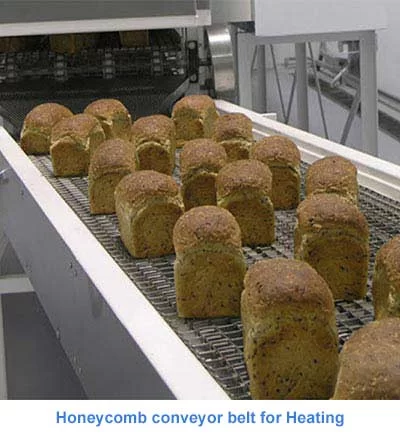

Honeycomb conveyor belt for Heating
Honeycomb conveyor belt for Heating
Honeycomb conveyor belt for Heating
Honeycomb conveyor belt for Heating

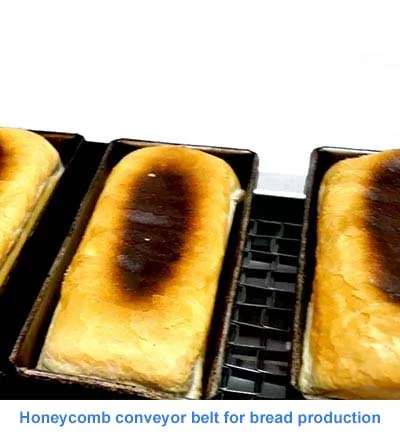

Honeycomb conveyor belt for bread production

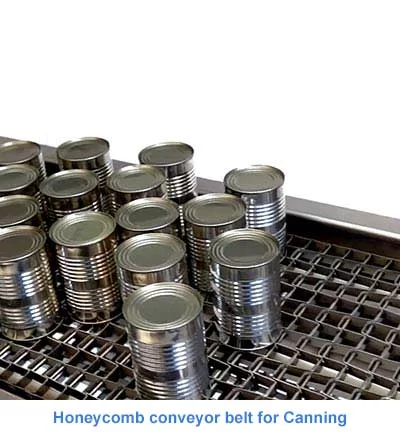

Honeycomb conveyor belt for Canning

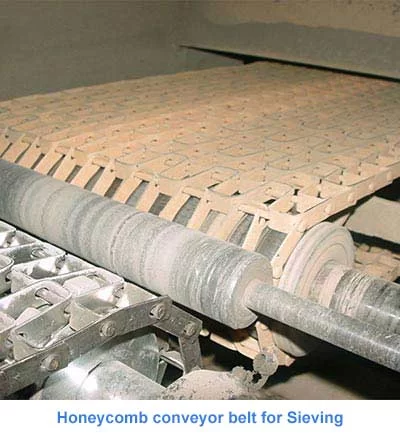

Honeycomb conveyor belt for Sieving

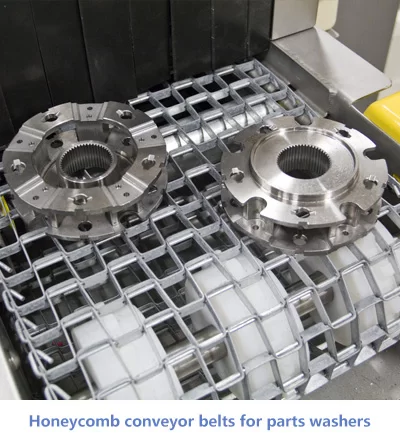

Honeycomb conveyor belts for parts washers
-
