Plate Link Conveyor Belts
Plate Link Conveyor Belts
Contact Us Now >
Download
Plate conveyor belt consists of hinged slats with or without perforations. Perforated plate belt is ideal for drainage conveyor system. The size of perforation range can be custom, its possibility to have of al kinds of perforations to fit the product production line.
Hinged plate belts have side plates and cross flights in various combinations of height and thickness to suit different customers' requirements. They can satisfy light to heavy load capacity. Chain edge plate belts are also available in side plates and cross flights. The chains at both ends can be fixed with cotter pins or washers, which are convenient to disassemble and maintain.
The link plate belts are tailor made and can be executed with pitches in almost any width and length and plate thickness .The link plate belt is positively driven by sprockets, and can be used at conveyor speeds of less than about 120 meters per minute.
Plate Conveyor Belt Advantages
• Temperature resistance, which can be used in production processes with temperatures of -30ºC to +600ºC infood and other industries.
• Corrosion and rust resistance make it possible be used in the corrosive environments.
• The baffles can be added onto the belt for convenient sorting and conveying.
• The side guards can be added onto the belt to prevent products from spillage.
• Chain link edge can ensure the smooth and high efficiency working.
• Curved perforated plate conveyor belt is available to suit more applications and equipment.
• Suitable for arduous engineering processes such as press work, die-casting and forging.
• Link plate belt needs minimal maintenance and will have a working life of many years.
Belt Types

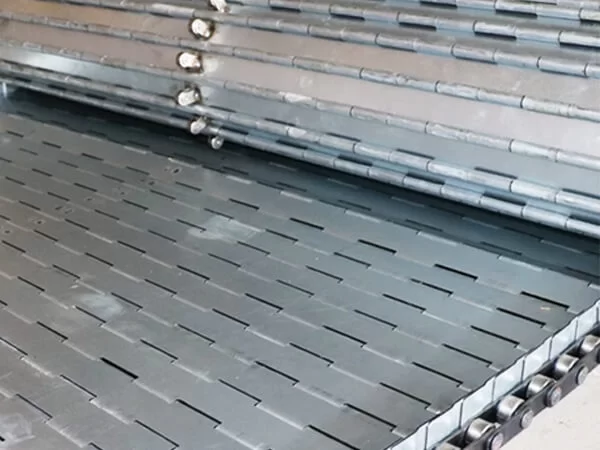

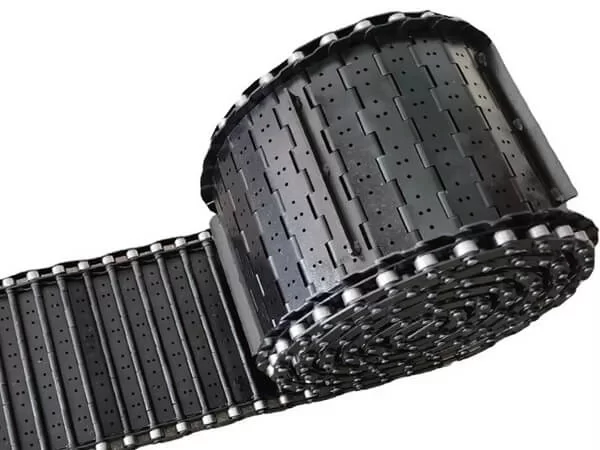

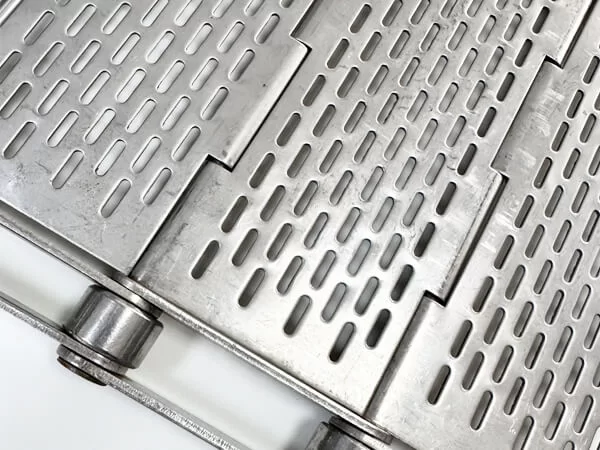

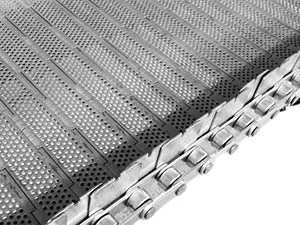

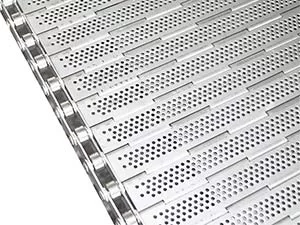

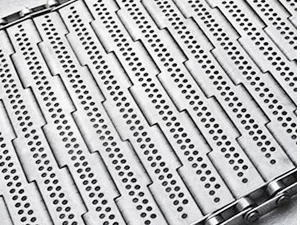

Plate conveyor belt consists of hinged slats with perforations

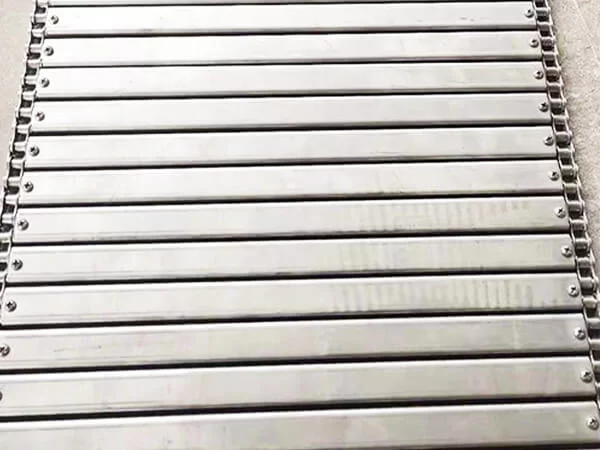

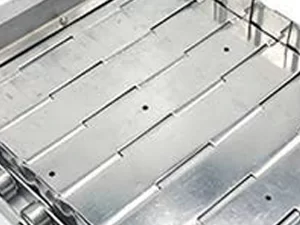

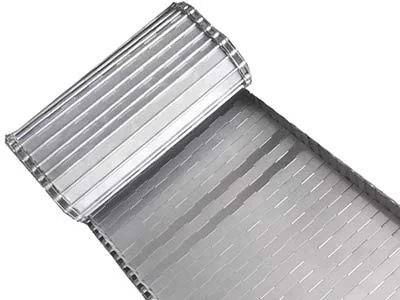

Plate conveyor belt consists of hinged slats without perforations

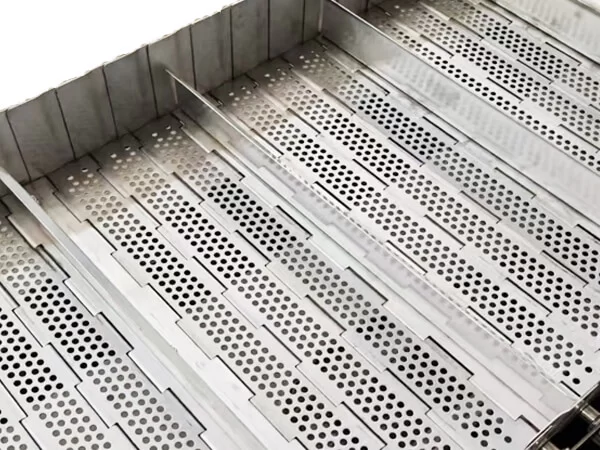

Plate conveyor belt with baffles can help to sort and convey products
Chip conveyor belt
Edge Availability

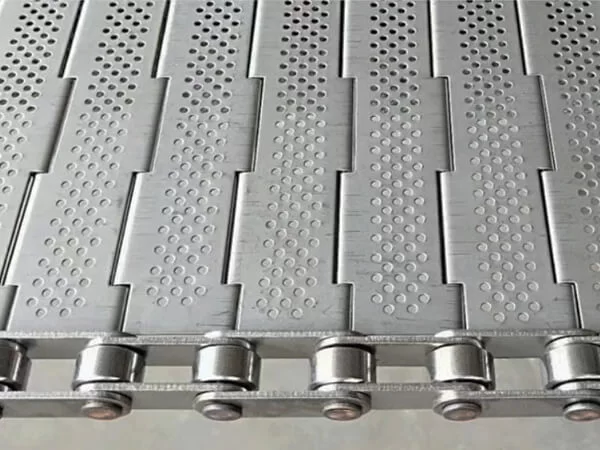

Standard plate link conveyor belt

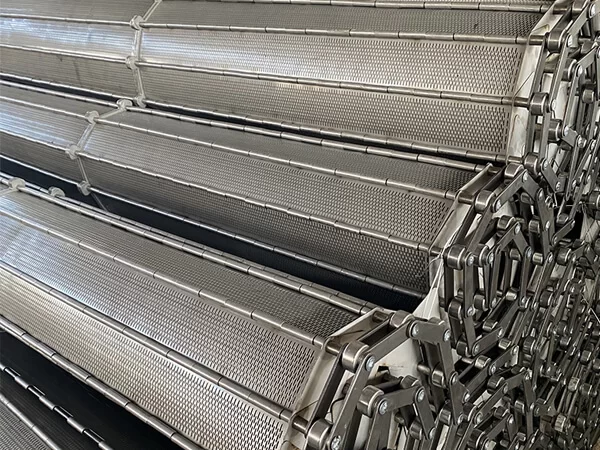

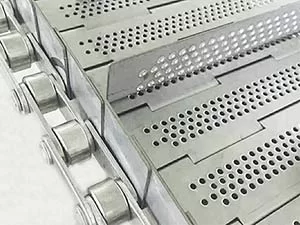

Plate link conveyor belt with side plate
Material Availability
The plate link conveyor belt can be made of steel, stainless steel AISI 304, AISI 316 or others, have superior corrosive resistance to suit most applications at elevated temperature.
Specifications

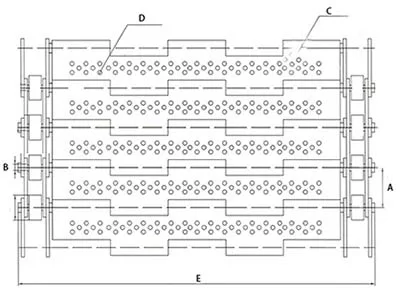

A: Chain Pitch (mm) B: Rod Diameter (mm)
C: Plate Thickness (mm) D: Perforated Hole Dia (mm) E: Total Width (mm)
Specifications of plate link conveyor belt | |||
Item | Chain Pitch (mm) | Rod Diameter (mm) | Plate Thickness (mm) |
PLCB-01 | 25.4 | 5 | 1 |
PLCB-02 | 25.4 | 6 | 1 |
PLCB-03 | 25.4 | 6 | 1.5 |
PLCB-04 | 31.75 | 6 | 1 |
PLCB-05 | 31.75 | 6 | 1.5 |
PLCB-06 | 31.75 | 8 | 2 |
PLCB-07 | 38.1 | 6 | 1 |
PLCB-08 | 38.1 | 6 | 1.5 |
PLCB-09 | 38.1 | 8 | 1 |
PLCB-10 | 38.1 | 8 | 1.5 |
PLCB-11 | 38.1 | 8 | 2 |
PLCB-12 | 50.8 | 6 | 1.2 |
PLCB-13 | 50.8 | 8 | 1 |
PLCB-14 | 50.8 | 8 | 1.5 |
PLCB-15 | 50.8 | 10 | 2 |
PLCB-16 | 50.8 | 10 | 3 |
PLCB-17 | 63.5 | 10 | 2 |
PLCB-18 | 63.5 | 10 | 1.5 |
PLCB-19 | 63.5 | 10 | 3 |
PLCB-20 | 80 | 8 | 1.5 |
PLCB-21 | 80 | 8 | 2 |
PLCB-22 | 80 | 10 | 2 |
PLCB-23 | 80 | 10 | 2.5 |
PLCB-24 | 100 | 10 | 1.5 |
PLCB-25 | 100 | 10 | 2 |
PLCB-26 | 100 | 14 | 2 |
PLCB-27 | 100 | 14 | 3 |
PLCB-28 | 101.6 | 10 | 4 |
PLCB-29 | 106.6 | 14 | 4 |
PLCB-30 | 125 | 20 | 3 |
NOTE: Custom specification is available if you can't find the suitable size. | |||
Applications of plate link conveyor belt
● Cooling systems
● Washing systems
● Waste treatment systems
● Blanching systems
● Sieving systems
● Drying systems
● Sorting systems
● Bread production systems
● Product handling systems
● Transport systems
● Drainage systems
● Elevating systems
● De-Elevating systems

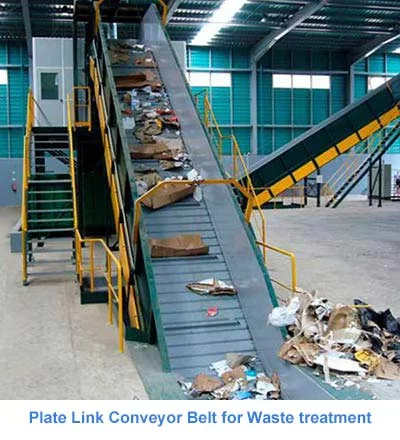

Plate Link Conveyor Belt for Waste treatment
Plate Link Conveyor Belt for Elevating

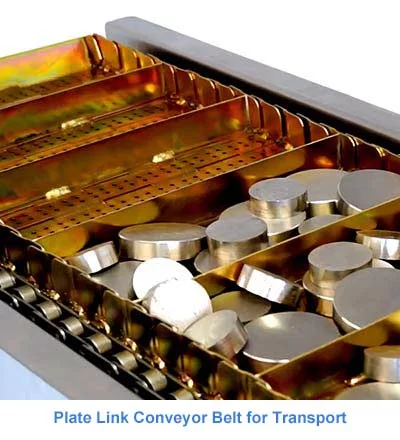

Plate Link Conveyor Belt for Transport

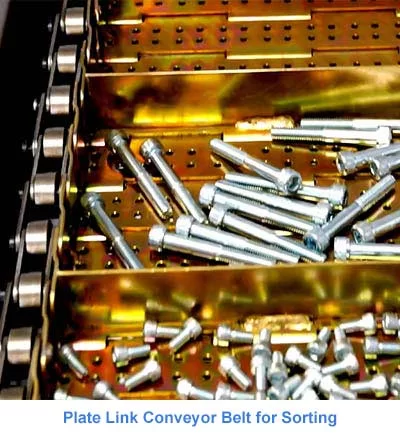

Plate Link Conveyor Belt for Sorting

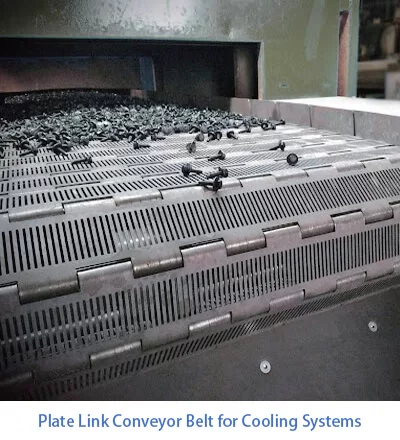

Plate Link Conveyor Belt for Cooling Systems

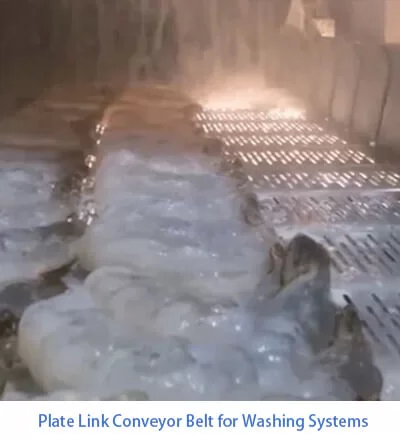

Plate Link Conveyor Belt for Washing Systems

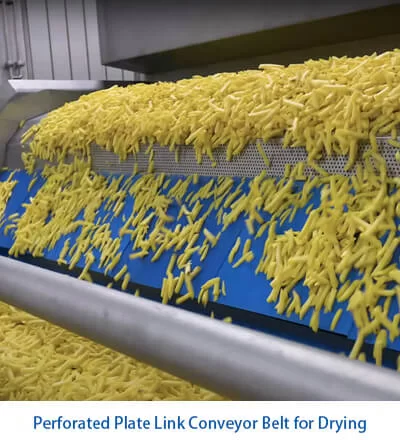

Perforated Plate Link Conveyor Belt for Drying
-
