How To Accurately Connect The Herringbone Mesh Belt And Blocking Plate?

In industries such as heat treatment, catalysts, and food baking, herringbone mesh belts with blocking plates are used to ensure a smooth surface and prevent material leakage.

But many customers privately message Jiaoyang: During installation, they may encounter problems such as weak connection and misaligned blocking, which affect the conveying efficiency and the service life of the mesh belt. Today we will explain how to accurately connect a herringbone mesh belt with a stopper.

01 Preparation before mesh belt docking

With its structural stability and material interception advantages, the herringbone mesh belt with blocking plates needs to clarify several key components before docking.

The required accessories for docking will be prepared by Jiaoyang for customers and friends, and will be shipped together with the mesh belt.

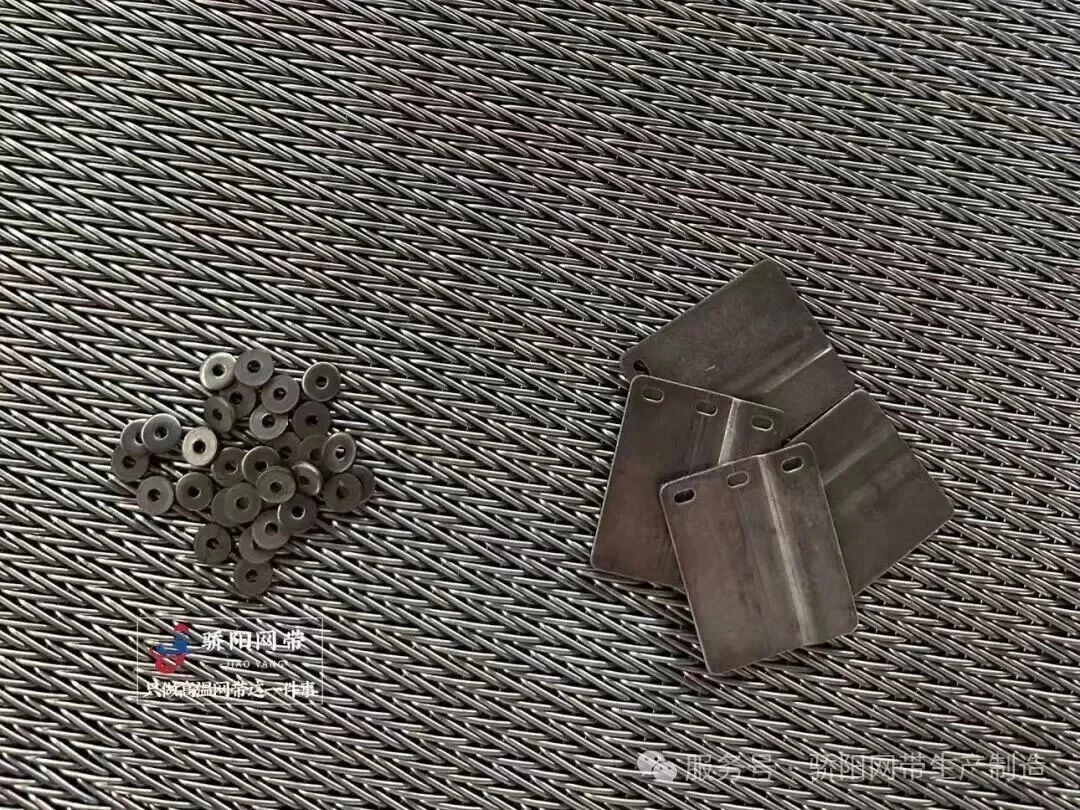

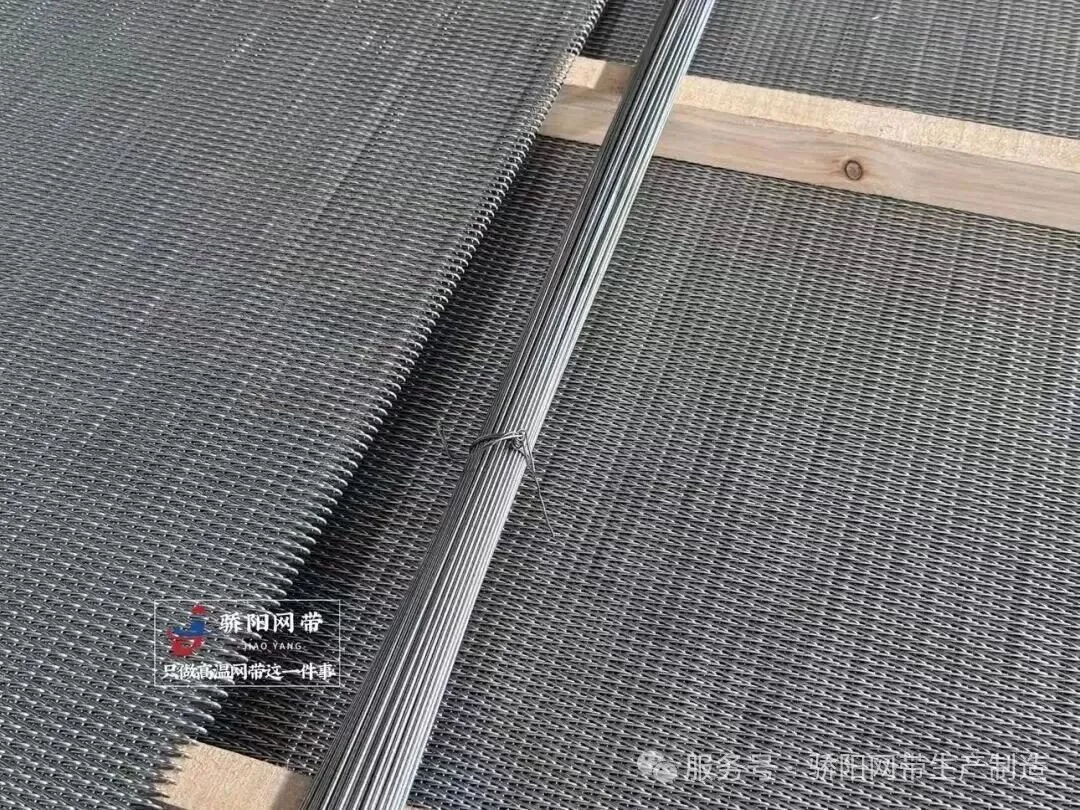

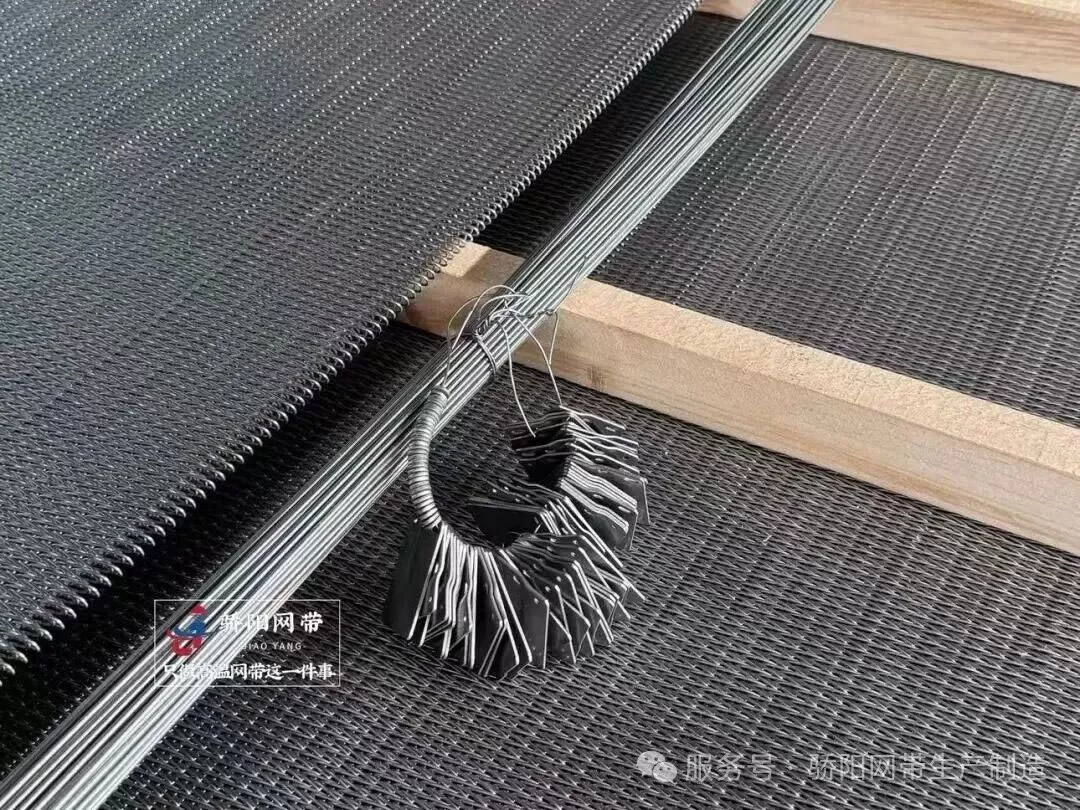

Wearing strips: Jiaoyang has prepared long and short wearing strips for customers and friends, which are the core "bones" connecting the mesh belt;

Positive/Negative Spiral: The woven structure of the mesh belt needs to be connected through the engagement of the spiral during docking;

Block: used to intercept materials, ensuring precise alignment of holes during docking.

Tool preparation: pliers, argon arc welding, gaskets, etc., ensure that the tools are in good condition and provide protection for subsequent operations.

02 Mesh belt docking practical operation

Step 1: Clarify the "Parts List"

After receiving the herringbone mesh belt with blocking plate to be docked, first identify the structure of the "head" and "tail".

At this point, it is necessary to remove the long straps from the factory and classify them into "long" and "short" categories.

When docking, one long threading strip and three short threading strips are required. Pre classification can avoid confusion in subsequent operations.

Step 2: Spiral meshing, connecting the foundation

Move the positive spiral part of the mesh belt to the docking end, pick up the short threading strip, and thread it through the corner of the mesh belt to achieve preliminary engagement of the positive and negative spirals.

This step requires patient operation to ensure that the two short threading strips are evenly inserted, so that the spiral structure of the mesh belt is tightly interlocked, laying a solid foundation for subsequent blocking docking.

Step 3: Align the blocking plate and accurately connect it

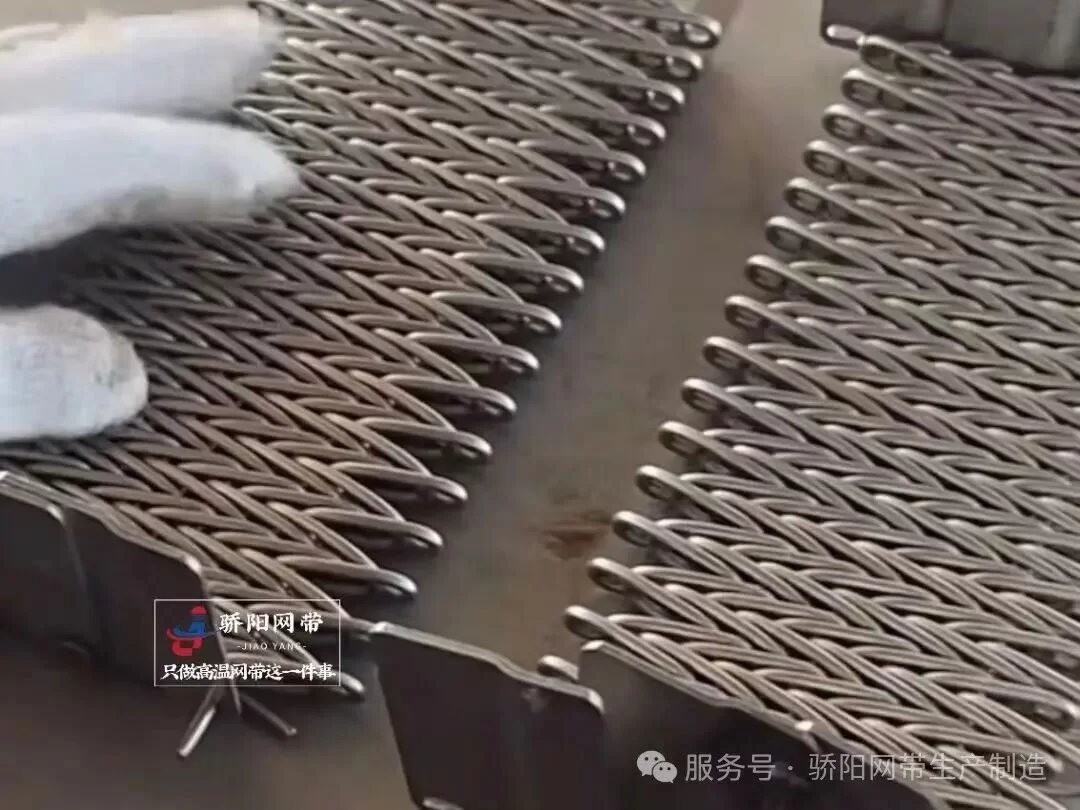

After removing the long threading strip, align the blocking plate according to the principle of "hole to hole", and thread the long threading strip through the circular hole of the blocking plate, penetrating the entire docking area.

This process requires careful adjustment of the stopper position to ensure that each hole is accurately aligned, avoiding the mesh belt from running stuck due to misalignment.

Step 4: Reinforcement molding for long-lasting stability

Place a gasket in the direction of the stopper docking, and use an argon arc welding machine to firmly weld the gasket to the mesh belt and stopper.

After welding is completed, use pliers to bend the end of the strip and further reinforce the connection to prevent the strip from falling off during operation.

03 Jiaoyang Quality Guarantee

Jiaoyang Mesh Belt has been deeply involved in the field of high-temperature mesh belts for many years, specializing only in high-temperature mesh belts!

Provide free technical guidance. If you encounter any problems during the integration, use, or maintenance of the Netbelt, you can contact our technical team at any time;

Launch customized mesh belt solutions, tailor mesh belt products according to your equipment operating conditions and material characteristics, and reduce maintenance frequency from the source.

Mastering the docking technology of herringbone mesh belts with blocking plates can not only improve equipment maintenance efficiency, but also extend the service life of mesh belts, reducing costs and increasing efficiency for enterprise production.

If there is a need for partial replacement or truncation in the future, the blocking plate is easy to disassemble and replace.
