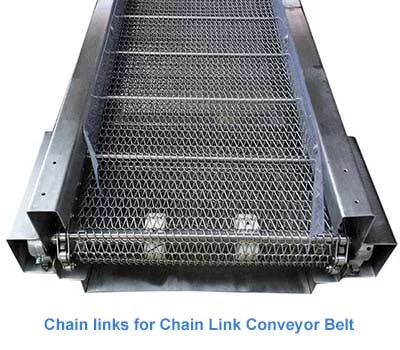

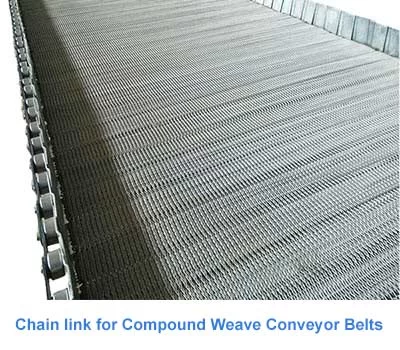

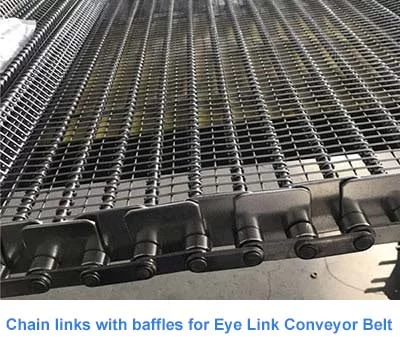

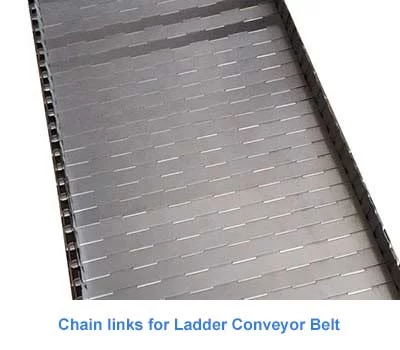

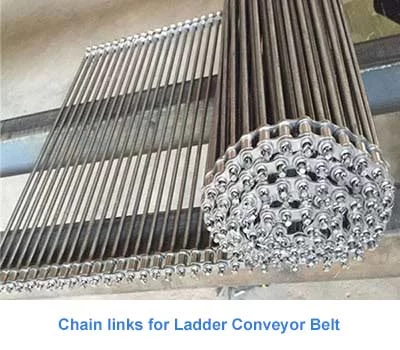

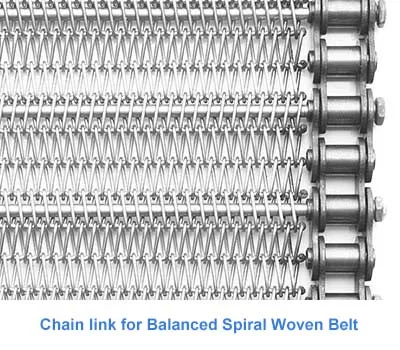

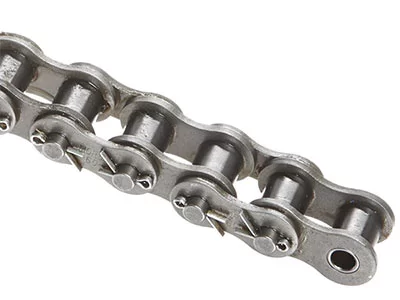

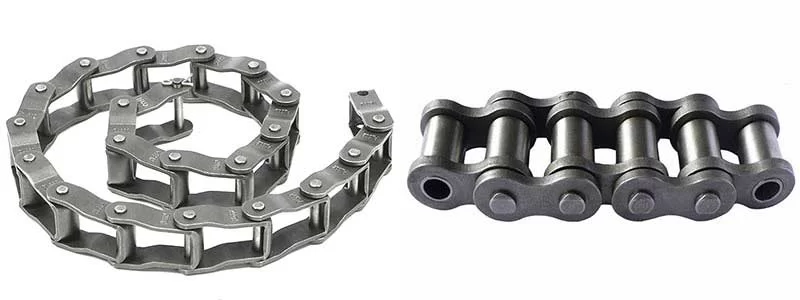

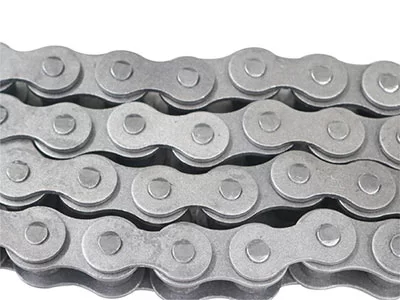

Chain links are widely used in all kinds of metal conveyor belt as edges. It can be used combined with sprocket wheels to ensure the smooth and high efficient conveying working. Chain links have many different types and specs, which can suit more equipment and applications.
The material of the chain links can be carbon steel, stainless steel or alloy steel. The specifications of the chain links can be customized according to the parameters of your conveyor belt, which has achieved the best matching effect.

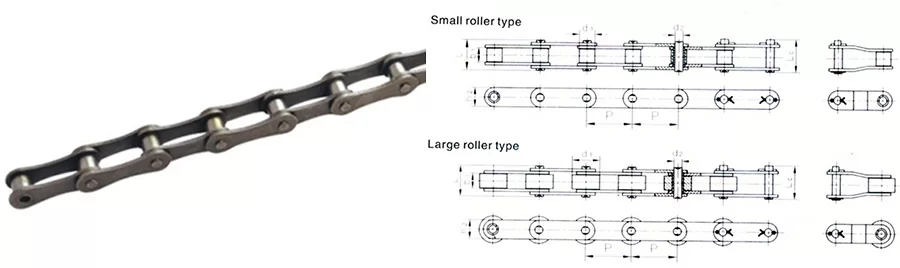

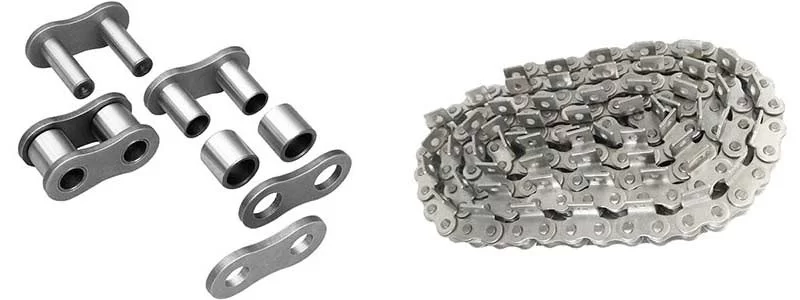

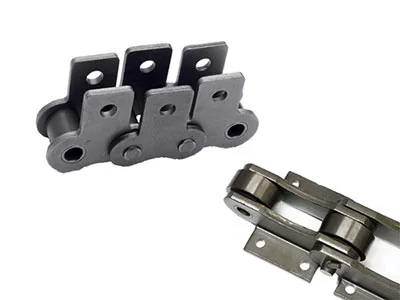

Chain link Types
Material Availability
Available material types include:
Stainless Steel – Corrosive environments
Carbon steel
Other materials are available on request.
Specifications

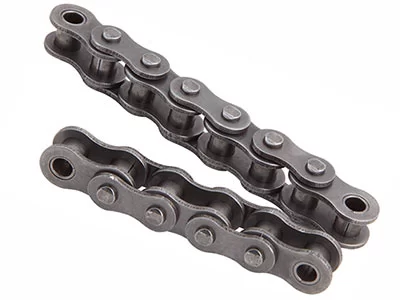

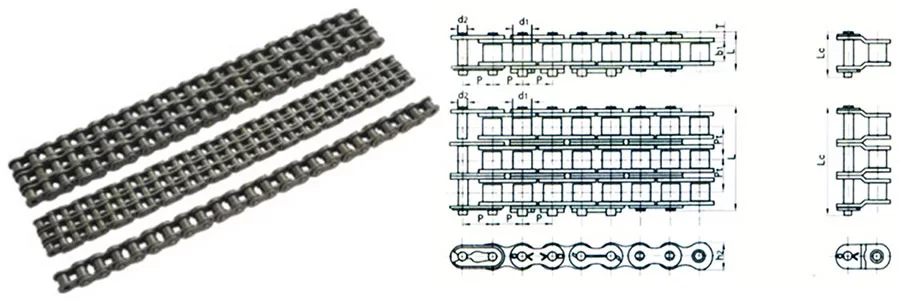

A series short pitch precision roller chain
| ISO chain | ANSI chain | Pitch | Roller diameter | Width between inner plates | Bearing pin body diameter | Width over bearing pin | With over connecting pin | inner piate depth | Transverse pitch | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | dl max | bl min | d2 max | L max | Lc max | h2 max | Pt | T | Q min | - Q | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | ||
| *04C-1 | 25 | 6.35 | 3.3 | 3.1 | 2.31 | 8 | 9.9 | 6.02 | - | 0.8 | 3.5 | 4.4 | 0.14 |
| *06C-1 | 35 | 9.525 | 5.08 | 4.68 | 3.58 | 12.4 | 14.4 | 8.7 | - | 1.3 | 7.9 | 10.4 | 0.33 |
| 285-1 | 41 | 12.7 | 7.77 | 6.25 | 3.58 | 13.75 | 16 | 9.91 | - | 1.25 | 6.7 | 11.8 | 0.41 |
| 08A-1 | 40 | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 19.1 | 12.07 | - | 1.5 | 13.8 | 17.8 | 0.62 |
| 10A-1 | 50 | 15.875 | 10.16 | 9.4 | 5.08 | 20.7 | 23.3 | 15.09 | - | 2 | 21.8 | 28 | 1.02 |
| 12A-1 | 60 | 19.05 | 11.91 | 12.57 | 5.94 | 25.9 | 28.6 | 18.08 | - | 2.44 | 31.1 | 39 | 1.5 |
| 16A-1 | 80 | 25.4 | 15.88 | 15.75 | 7.92 | 32.7 | 38 | 24.13 | - | 3.26 | 55.6 | 71.5 | 2.6 |
| 20A-1 | 100 | 31.75 | 11.91 | 18.9 | 9.53 | 41.1 | 44.9 | 30.18 | - | 4 | 86.7 | 102 | 3.91 |
| 24A-1 | 120 | 38.1 | 15.88 | 25.22 | 11.1 | 50.8 | 56.1 | 36.2 | - | 4.8 | 124.6 | 156.9 | 5.62 |
| 28A-1 | 140 | 44.45 | 25.4 | 25.22 | 12.7 | 54.9 | 60.8 | 42.24 | - | 5.65 | 169 | 210.8 | 7.5 |
| 32A-1 | 160 | 50.8 | 28.58 | 31.55 | 14.27 | 65.5 | 72.6 | 48.26 | - | 6.45 | 222.4 | 269.7 | 10.1 |
| 36A-1 | 180 | 57.15 | 35.71 | 35.48 | 17.46 | 72.8 | 83 | 54.31 | - | 7.25 | 280.2 | 327.8 | 13.45 |
| 40A-1 | 200 | 63.5 | 39.68 | 37.85 | 19.85 | 80.3 | 90.5 | 6.33 | - | 8 | 347 | 410 | 16.15 |
| 48A-1 | 240 | 76.2 | 47.63 | 47.35 | 23.81 | 95.5 | 106 | 72.39 | - | 9.5 | 500.4 | 585.4 | 23.2 |
| *04C-2 | *25-2 | 6.35 | 3.3 | 3.1 | 2.31 | 14.5 | 16.5 | 6.02 | 6.4 | 0.8 | 7 | 8.8 | 0.28 |
| *06C-2 | *25-2 | 9.525 | 5.08 | 4.68 | 3.58 | 22.5 | 24.5 | 8.7 | 10.13 | 1.3 | 15.8 | 20.8 | 0.63 |
| 08A-2 | 40-2 | 12.7 | 7.95 | 7.85 | 3.96 | 31 | 33.5 | 12.07 | 14.38 | 1.5 | 27.6 | 35.6 | 1.12 |
| 10A-2 | 50-2 | 15.875 | 10.16 | 9.4 | 5.08 | 38.9 | 41.3 | 15.09 | 18.11 | 2 | 43.6 | 56 | 2 |
| 12A-2 | 60-2 | 19.05 | 11.91 | 12.57 | 5.94 | 48.8 | 51.5 | 18.08 | 22.78 | 2.44 | 62.3 | 82.4 | 2.92 |
| 16A-2 | 80-2 | 25.4 | 15.88 | 15.75 | 7.92 | 62.7 | 62.7 | 24.13 | 29.29 | 3.26 | 111.2 | 143 | 5.15 |
| 20A-2 | 100-2 | .1.75 | 19.05 | 18.9 | 9.53 | 76.4 | 83.1 | 30.18 | 35.76 | 4 | 173.5 | 204.2 | 7.8 |
| 24A-2 | 120-2 | .8.1 | 22.23 | 25.22 | 11.1 | 96.3 | 101.6 | 36.2 | 45.44 | 4.8 | 249.1 | 313.8 | 11.7 |
| 28A-2 | 140-2 | 44.45 | 25.4 | 25.22 | 12.7 | 103.6 | 109.4 | 42.24 | 48.87 | 5.65 | 338.1 | 421.7 | 15.14 |
| 32A-2 | 160-2 | 50.8 | 28.58 | 31.55 | 14.27 | 123.3 | 130.2 | 48.26 | 58.55 | 6.45 | 444.8 | 539.4 | 20.14 |
| 36A-2 | 180-2 | 57.15 | 35.71 | 35.48 | 17.46 | 138.6 | 148.5 | 54.31 | 65.84 | 7.25 | 560.5 | 655.7 | 29.22 |
| 40A-2 | 200-2 | 63.5 | 39.68 | 37.85 | 19.85 | 151.9 | 161.5 | 6.33 | 71.55 | 8 | 693.9 | 820 | 32.24 |
| 48A-2 | 240-2 | 76.2 | 47.63 | 47.35 | 23.81 | 183.4 | 193.9 | 72.39 | 87.83 | 9.5 | 1000.8 | 1170.8 | 45.23 |
| *06C-3 | *35-3 | 9.525 | 5.08 | 4.68 | 3.58 | 32.7 | 34.7 | 8.7 | 10.13 | 1.3 | 23.7 | 30 | 1.05 |
| 08A-3 | 40-3 | 12.7 | 7.95 | 7.85 | 3.96 | 45.4 | 48 | 12.07 | 14.38 | 1.5 | 41.4 | 51.2 | 1.9 |
| 10A-3 | 50-3 | 15.875 | 10.16 | 9.4 | 5.08 | 57 | 59.8 | 15.09 | 18.11 | 2 | 65.4 | 82 | 3.09 |
| 12A-3 | 60-3 | 19.05 | 11.91 | 12.57 | 5.94 | 71.5 | 75.6 | 18.08 | 22.78 | 2.44 | 93.4 | 115 | 4.54 |
| 16A-3 | 80-3 | 25.4 | 15.88 | 15.75 | 7.92 | 91.7 | 96.8 | 24.13 | 29.29 | 3.26 | 166.8 | 208 | 7.89 |
| 20A-3 | 100-3 | 31.75 | 19.05 | 18.9 | 9.53 | 112.2 | 117.2 | 30.18 | 35.76 | 4 | 260.2 | 310 | 11.77 |
| 24A-3 | 120-3 | 38.1 | 22.23 | 25.22 | 11.1 | 141.7 | 148.3 | 36.2 | 35.44 | 4.8 | 373.7 | 470.7 | 17.53 |
| 28A-3 | 140-3 | 44.45 | 25.4 | 25.22 | 12.7 | 152.2 | 158.3 | 42.24 | 48.87 | 5.65 | 507.1 | 632.5 | 22.2 |
| 32A-3 | 160-3 | 50.8 | 28.58 | 31.55 | 14.27 | 181.8 | 188.6 | 48.26 | 58.55 | 6.45 | 667.2 | 809 | 30.02 |
| 36A-3 | 180-3 | 57.15 | 35.71 | 35.48 | 17.46 | 204.4 | 214.5 | 54.31 | 65.84 | 7.25 | 840.7 | 983.6 | 38.22 |
| 40A-3 | 200-3 | 63.5 | 39.68 | 37.85 | 19.85 | 223.5 | 232.9 | 60.33 | 71.55 | 8 | 1040.9 | 1230 | 49.03 |
| 48A-3 | 240-3 | 76.2 | 47.63 | 47.35 | 23.81 | 271.2 | 281.8 | 72.39 | 87.83 | 9.5 | 1501.3 | 1756.2 | 71.6 |
B series short pitch precision roller chain
| ISO BS chain No. | Pitch | Roller diameter | Width between Inner plates | Bearing pin body diameter | Width over bearing pin | With over connecting pin | inner piate depth | Transverse pitch | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | dl max | bl min | d2 max | L max | Lc max | h2 max | Pt | Q min | - Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 15.15 | 8.26 | - | 8.9 | 10.3 | 0.41 |
| 08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.95 | 19.05 | 11.81 | - | 17.8 | 19.6 | 0.69 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.5 | 22 | 14.73 | - | 22.2 | 27.5 | 0.93 |
| 12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 25.1 | 16.13 | - | 28.9 | 33.3 | 1.15 |
| 16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36.1 | 41.5 | 21.08 | - | 60 | 71 | 2.71 |
| 20B-1 | 31.75 | 19.05 | 19.58 | 10.19 | 42.4 | 47.6 | 26.42 | - | 95 | 101.8 | 3.7 |
| 24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.4 | 60 | 33.4 | - | 160 | 176 | 7.1 |
| 28B-1 | 44.45 | 27.94 | 30.99 | 15.9 | 65.1 | 72.5 | 37.08 | - | 200 | 215.6 | 8.5 |
| 32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66.91 | 73.6 | 42.29 | - | 250 | 280.3 | 10.25 |
| 40B-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.6 | 91.3 | 52.96 | - | 355 | 392 | 16.35 |
| 48B-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 109.6 | 63.88 | - | 560 | 599.2 | 25 |
| *06B-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.4 | 27.1 | 8.26 | 10.24 | 16.9 | 18.1 | 0.74 |
| 08B-2 | 12.7 | 8.51 | 7.75 | 4.45 | 31 | 33 | 11.81 | 13.92 | 31.1 | 37.4 | 1.34 |
| 10B-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.1 | 38.6 | 14.73 | 16.59 | 44.5 | 54.2 | 1.84 |
| 12B-2 | 19.05 | 12.07 | 11.68 | 5.72 | 42 | 44.4 | 16.13 | 19.46 | 57.8 | 66.6 | 2.31 |
| 16B-2 | 25.4 | 15.88 | 17.02 | 8.28 | 68 | 73.4 | 21.08 | 31.88 | 106 | 126.5 | 5.42 |
| 20B-2 | 31.75 | 19.05 | 19.58 | 10.19 | 79.7 | 83.6 | 26.42 | 36.45 | 170 | 210 | 7.2 |
| 24B-2 | 38.1 | 25.4 | 25.4 | 14.63 | 101.4 | 108.4 | 33.4 | 48.36 | 280 | 305 | 13.4 |
| 28B-2 | 44.45 | 27.94 | 30.99 | 15.9 | 124.7 | 132.1 | 37.08 | 59.56 | 360 | 390 | 16.6 |
| 32B-2 | 50.8 | 29.21 | 30.99 | 17.81 | 125.46 | 132.4 | 42.29 | 58.55 | 450 | 487.5 | 21 |
| 40B-2 | 63.5 | 39.37 | 38.1 | 22.89 | 154.5 | 163.8 | 52.96 | 72.29 | 630 | 680.2 | 32 |
| 48B-2 | 76.2 | 48.26 | 45.72 | 29.24 | 192.4 | 200.9 | 63.88 | 91.21 | 1000 | 1070 | 20 |
| *06B-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.5 | 37.3 | 8.26 | 10.24 | 24.9 | 29.8 | 1.16 |
| 08B-3 | 12.7 | 8.51 | 7.75 | 4.45 | 44.9 | 47.2 | 11.81 | 13.92 | 44.5 | 50.2 | 2.03 |
| 10B-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.7 | 55.6 | 14.73 | 16.59 | 66.7 | 79.8 | 2.77 |
| 12B-3 | 19.05 | 12.07 | 11.68 | 5.72 | 61.5 | 65.2 | 16.13 | 19.46 | 86.7 | 101.8 | 3.46 |
| 16B-3 | 25.4 | 15.88 | 17.02 | 8.28 | 99.8 | 105.3 | 21.08 | 31.88 | 160 | 190 | 8.13 |
| 20B-3 | 31.75 | 19.05 | 19.58 | 10.19 | 114.55 | 121.2 | 26.42 | 36.45 | 250 | 276.2 | 10.82 |
| 24B-3 | 38.1 | 25.4 | 25.4 | 14.63 | 150.2 | 156.8 | 33.4 | 48.36 | 425 | 480 | 20.1 |
| 28B-3 | 44.45 | 27.94 | 30.99 | 15.9 | 184.3 | 191.7 | 37.08 | 59.56 | 530 | 580 | 24.92 |
| 32B-3 | 50.8 | 29.21 | 30.99 | 17.81 | 184.01 | 191 | 42.29 | 58.55 | 670 | 720.2 | 31.56 |
| 40B-3 | 63.5 | 39.37 | 38.1 | 22.89 | 226.8 | 236.1 | 52.96 | 72.29 | 950 | 1020 | 48.1 |
| 48B-3 | 76.2 | 48.26 | 45.72 | 29.24 | 281.6 | 292.1 | 63.88 | 91.21 | 1500 | 1590 | 75 |

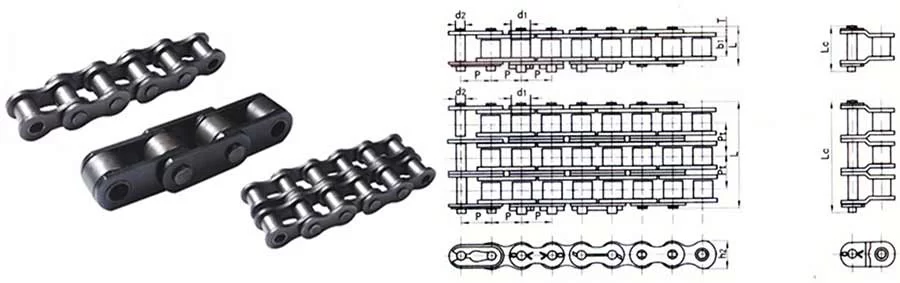

Double pitch conveyor chain
| DIN ISO chain No. | ANSI chain No. | Pitch | roller diameter | Width between inner plates | pin diameter | pin Length | in Piate Deotg | Ultimate tensile strength | Average tensile strength | Weight per meter | |
| P | dl max | bl min | d2 max | L max | Lc max | h2 max | Q min | Qo | q | ||
| mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | ||
| C208A | C2040 | 25.4 | 7.95 | 7.85 | 3.96 | 16.6 | 18.8 | 12 | 14.1 | 16 | 0.5 |
| C208AL | C2042 | 25.4 | 15.88 | 7.85 | 3.96 | 16.6 | 18.8 | 12 | 14.1 | 16 | 0.84 |
| C208B | 25.4 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 18 | 19.3 | 0.55 | |
| C208BL | 25.4 | 15.88 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 18 | 19.3 | 0.89 | |
| C210AL | C2052 | 31.75 | 19.05 | 9.4 | 5.08 | 20.7 | 23.3 | 15 | 22.2 | 26.5 | 1.27 |
| C212A | C2060 | 38.1 | 11.91 | 12.57 | 5.94 | 25.9 | 28.3 | 18 | 31.8 | 35.5 | 1.12 |
| C212AL | C2062 | 38.1 | 22.23 | 12.57 | 5.94 | 25.9 | 28.3 | 18 | 31.8 | 35.5 | 1.61 |
| C212AH | C2060H | 38.1 | 11.91 | 12.57 | 5.94 | 29.2 | 31.6 | 18 | 31.8 | 39.3 | 1.44 |
| C212AHL | C2062H | 38.1 | 22.23 | 12.57 | 5.94 | 29.2 | 31.6 | 18 | 31.8 | 39.3 | 2.07 |
| C216A | C2080 | 50.8 | 15.88 | 15.75 | 7.92 | 32.7 | 36.5 | 24 | 56.7 | 66.2 | 2.08 |
| C212AL | C2082 | 50.8 | 28.58 | 15.75 | 7.92 | 32.7 | 36.5 | 24 | 56.7 | 66.2 | 3.12 |
| C216AH | C2080H | 50.8 | 15.88 | 15.75 | 7.92 | 36.2 | 39.4 | 24.4 | 56.7 | 68.8 | 2.54 |
| C216AHL | C2082H | 50.8 | 28.58 | 15.75 | 7.92 | 36.2 | 39.4 | 24.4 | 56.7 | 68.8 | 3.58 |
| C220A | C2100 | 63.5 | 19.05 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 88.5 | 103.6 | 3.01 |
| C220AL | C2102 | 63.5 | 39.67 | 18.9 | 9.53 | 40.4 | 44.7 | 30 | 88.5 | 103.6 | 4.83 |
| C220AH | C2100H | 63.5 | 19.05 | 18.9 | 9.53 | 43.6 | 46.9 | 30 | 88.5 | 106.6 | 3.56 |
| C220AHL | C2102H | 63.5 | 39.67 | 18.9 | 9.53 | 43.6 | 46.9 | 30 | 88.5 | 106.6 | 5.38 |
| C224A | C2120 | 76.2 | 22.23 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 127 | 147 | 4.66 |
| C224AL | C2122 | 76.2 | 44.45 | 25.22 | 11.1 | 50.3 | 54.3 | 35.7 | 127 | 147 | 7.66 |
| C224AH | C2120H | 76.2 | 22.23 | 25.22 | 11.1 | 53.5 | 57.5 | 36.2 | 127 | 151.2 | 5.26 |
| C224AHL | C2122H | 76.2 | 44.45 | 25.22 | 11.1 | 53.5 | 57.5 | 36.2 | 127 | 151.2 | 8.26 |
| C232A | C2160 | 101.6 | 28.58 | 31.75 | 14.27 | 64.8 | 69.6 | 47.8 | 226.8 | 260.2 | 8.23 |
| C232AL | C2162 | 101.6 | 57.15 | 31.75 | 14.27 | 64.8 | 69.6 | 47.8 | 226.8 | 260.2 | 11.95 |
| C232AH | C2160H | 101.6 | 28.58 | 31.75 | 14.27 | 68.2 | 73 | 47.8 | 226.8 | 266.8 | 9.06 |
| C232AHL | C2162H | 101.6 | 57.15 | 31.75 | 14.27 | 68.2 | 73 | 47.8 | 226.8 | 266.8 | 12.77 |

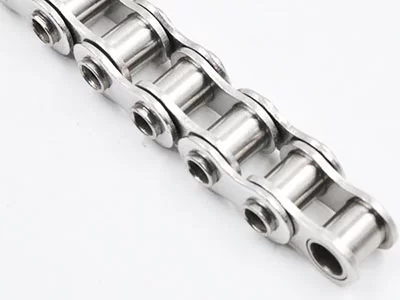

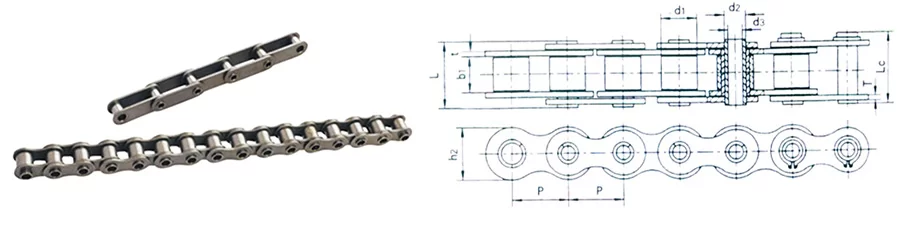

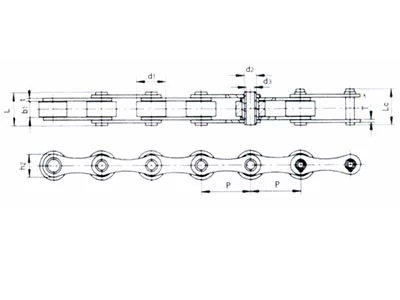

Hollow pin chain
| Tailong chain No | Pitch | Bush diameter | Width between inner plates | Bearing pin body diameter | Width over bearing ping | inner piate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | Type form | ||
| P | d1 min | bl max | d3 max | h2 max | L max | Lc max | h2 max | t/T max | Q min | Q | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | Kg/m | ||
| 08BHPF | 12.7 | 8.51 | 7.75 | 6.55 | 4.5 | 16.4 | 17.6 | 11.8 | 1.6/1.3 | 11.1 | 12.1 | 0.56 | A |
| 40HP | 12.7 | 7.95 | 7.85 | 5.63 | 4 | 16.5 | 17.6 | 12 | 1.5 | 11 | 12.2 | 0.54 | A |
| 50HP | 15.875 | 10.16 | 9.4 | 7.03 | 5.13 | 20.7 | 21.9 | 15.09 | 2.03 | 20.02 | 22.6 | 0.91 | A |
| 60HP | 19.05 | 11.91 | 12.7 | 8.31 | 6 | 25.8 | 26.8 | 18 | 2.42 | 24 | 26.9 | 1.29 | A |
| 60HPF1 | 19.05 | 11.91 | 12.7 | 8.31 | 5.01 | 25.5 | 26.8 | 18 | 2.42 | 28 | 30.9 | 1.37 | A |
| 80HP | 25.4 | 15.88 | 15.75 | 11.4 | 8.05 | 32.5 | 33.8 | 24 | 3.25 | 50 | 58.3 | 2.26 | A |
| Tailong chain No | Pitch | Bush diameter | Width between inner plates | Bearing pin diameter | Width over bearing pin | inner piate depth | Plate thickness | Ultimate tensile strength | Average tensile strength | Weight per meter | Type form | ||
| P | d1 | bl | d2 max | d3 max | L max | Lc max | h2 max | t/T max | Q min | Q | q | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | kg/m | ||
| C2040HP | 25.4 | 7.95 | 7.85 | 5.63 | 4 | 16.5 | 17.6 | 12 | 1.5 | 11 | 12.6 | 0.46 | B |
| C2042HP | 25.4 | 15.88 | 7.85 | 5.63 | 4 | 16.5 | 17.6 | 12 | 1.5 | 11 | 12.6 | 0.46 | B |
| C2050HP | 31.75 | 10.16 | 9.4 | 7.22 | 5.12 | 20.5 | 21.8 | 15 | 2.03 | 20.4 | 22.8 | 0.76 | B |
| C2052HP | 31.75 | 19.05 | 9.4 | 7.22 | 5.12 | 20.5 | 21.8 | 15 | 2.03 | 20.4 | 22.8 | 0.76 | B |
| C2060HP | 38.1 | 11.91 | 12.7 | 8.31 | 6 | 25.8 | 26.8 | 17 | 2.42 | 24 | 27.1 | 1.02 | B |
| C2062HP | 38.1 | 22.23 | 12.7 | 8.31 | 6 | 25.8 | 26.8 | 17 | 2.42 | 24 | 27.1 | 1.02 | B |
| C2080HP | 50.8 | 15.88 | 15.75 | 11.4 | 8.05 | 32.5 | 33.8 | 24 | 3.25 | 50 | 55.2 | 1.81 | B |
| C2082HP | 50.8 | 28.58 | 15.75 | 11.4 | 8.05 | 32.5 | 33.8 | 24 | 3.25 | 50 | 55.2 | 1.81 | B |

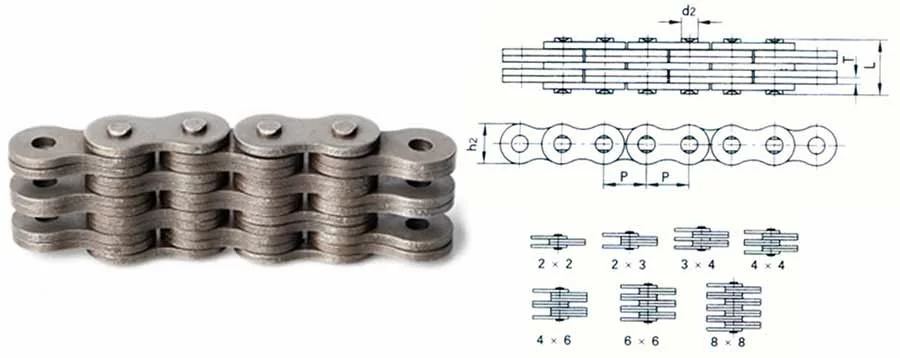

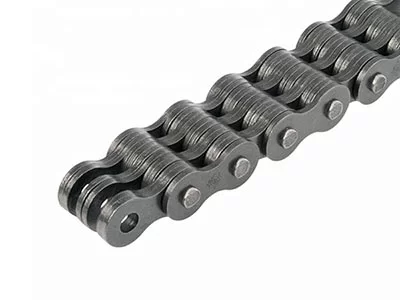

Leaf Chain
| ISO chain No. | ANSI chair No. | Pitch | Platrs Lacing | Piate Deotg | Plate thickness | pin diameter | pin Length | Ultimate tensile strength | Average tensile strength | Weight per meter |
| P | h2 max | T max | d2 max | L max | Q max | q | ||||
| mm | mm | mm | mm | mm | KN | KN | kg/m | |||
| LH0822 | BL422 | 2 × 2 | 11.05 | 22.2 | 27.6 | 0.64 | ||||
| LH0823 | BL423 | 2 × 3 | 13.16 | 22.2 | 27.6 | 0.8 | ||||
| LH0834 | BL434 | 3 × 4 | 17.4 | 33.4 | 41.4 | 1.12 | ||||
| LH0844 | BL444 | 12.7 | 4 × 4 | 12.07 | 19.51 | 44.5 | 56 | 1.26 | ||
| LH0846 | BL446 | 4 × 6 | 23.75 | 44.5 | 56 | 1.6 | ||||
| LH086646 | BL466 | 6 × 6 | 27.99 | 66.7 | 81.7 | 1.92 | ||||
| LH0888 | BL488 | 8 × 8 | 36.45 | 89 | 109.4 | 2.56 | ||||
| LH1022 | BL522 | 2 × 2 | 12.9 | 33.4 | 42.8 | 0.88 | ||||
| LH1023 | BL523 | 2 × 3 | 15.37 | 33.4 | 42.8 | 1.1 | ||||
| LH1034 | BL534 | 3 × 4 | 20.32 | 48.9 | 63.6 | 1.5 | ||||
| LH1044 | BL544 | 15 | 4 × 4 | 15.09 | 2.44 | 5.96 | 22.78 | 66.7 | 84.5 | 1.8 |
| LH1046 | BL546 | 4 × 6 | 27.74 | 66.7 | 84.5 | 2.2 | ||||
| LH1066 | BL566 | 6 × 6 | 32.69 | 100.1 | 125.1 | 2.65 | ||||
| LH1088 | BL588 | 8 × 8 | 42.57 | 133.4 | 169.5 | 3.5 | ||||
| LH1222 | BL622 | 2 × 2 | 17.37 | 48.9 | 63.6 | 1.45 | ||||
| LH1223 | BL623 | 2 × 3 | 20.73 | 48.9 | 63.6 | 1.8 | ||||
| LH1234 | BL634 | 3 × 4 | 27.43 | 75.6 | 102.6 | 2.5 | ||||
| LH1244 | BL 644 | 875 | 4 × 4 | 18.11 | 3.3 | 7.94 | 30.78 | 97.9 | 122.3 | 2.9 |
| LH1246 | BL 646 | 4 × 6 | 37.49 | 97.9 | 122.3 | 3.6 | ||||
| LH1266 | BL666 | 6 × 6 | 44.2 | 146.8 | 190.8 | 4.3 | ||||
| LH1288 | BL688 | 8 × 8 | 57.61 | 195.7 | 238.8 | 5.8 | ||||
| LH1622 | BL822 | 2 × 2 | 21.34 | 84.5 | 108.2 | 2.2 | ||||
| LH1623 | BL823 | 2 × 3 | 25.48 | 84.5 | 108.2 | 2.7 | ||||
| LH1634 | BL834 | 3 × 4 | 33.76 | 129 | 143.6 | 3.8 | ||||
| LH1644 | BL844 | 19.05 | 4 × 4 | 24.13 | 4.09 | 9.54 | 37.9 | 169 | 214.6 | 4.3 |
| LH1646 | BL846 | 4 × 6 | 46.18 | 169 | 214.6 | 5.4 | ||||
| LH1666 | BL866 | 6 × 6 | 54.46 | 253.6 | 324.5 | 6.5 | ||||
| LH1688 | BL888 | 8 × 8 | 17.02 | 338.1 | 432.7 | 8.6 | ||||
| LH2022 | BL1022 | 2 × 2 | 25.37 | 115.6 | 146.8 | 3.4 | ||||
| LH2023 | BL1023 | 2 × 3 | 30.33 | 115.6 | 146.8 | 4.3 | ||||
| LH2034 | BL1034 | 3 × 4 | 40.23 | 182.4 | 231.6 | 6 | ||||
| LH2044 | BL1044 | 25.4 | 4 × 4 | 30.18 | 4.9 | 11.11 | 45.19 | 231.3 | 291.4 | 6.9 |
| LH2046 | BL1046 | 4 × 6 | 55.09 | 231.3 | 291.4 | 8.6 | ||||
| LH2066 | BL1066 | 6 × 6 | 65 | 347 | 430.3 | 10.3 | ||||
| LH2088 | BL1088 | 8 × 8 | 84.81 | 462.6 | 555.1 | 13.8 |
Typical Applications
Chain link for Balanced Spiral Woven Belt
Chain link for Compound Weave Conveyor Belts
Chain links with baffles for Eye Link Conveyor Belt
Chain links for Ladder Conveyor Belt
Chain links for Ladder Conveyor Belt
Chain links for Chain Link Conveyor Belt
-
Stainless steel basketPersonalized customization service: If you have special requirements, whether it is material, sty……
-
Woven Rod Bar Conveyor BeltsThe woven rod bar belt is a specialized conveyor belt known for its durability, heat resistance, and versatile design, making it ideal for various industrial drying and conveying applications, especially in the food, agricultural, and chemical industries.
-
Balanced Weave Conveyor BeltDirect Edge Welding – Provides maximum structural integrity and durability
U-Shaped Edge……
-
Double Balanced Weave Conveyor BeltDouble Wire Wrap Construction – Enhanced durability with interlocking spiral design……
-
Ladder Conveyor BeltsLadder Conveyor Belt is a simple but effective style of conveyor belt, generally used belt for common processes and common product loads. Its open design provides efficient operation with minimum maintenance as well as facilitating easy and thorough cleaning. Its lightweight and basic configuration make it a very economic and cost-effective style of belting for many different environments. The ladder belts are used in production processes with temperatures of -100ºC to +450ºC in food and other industries.
-
Honeycomb (Flat Wire) Conveyor BeltsHoneycomb conveyor belt, also called flat wire conveyor belt. The honeycomb belt is constructed of cross rods and a flat metal strip.
At the sides of the belt the cross rods have a welded ring (welded edges). In a number of dimensions it is possible to give the sides of the belt a clinged edge.
There are a number of predefined belt executions with different pitches and material dimensions. The belt can also be provided with side plates or flights. The flat wires are arranged in the form of lattice and jointed with the straight round rods. The material of flat wire belt are commonly high carbon steel, galvanized steel, stainless steel and other materials.
-
Compound Balanced Weave Conveyor Beltaka cord weave conveyor belt
aka v shaped conveyor belt
aka chevron conveyor belt
Compound Balanced Weave Conveyor Belt: Also known as Chevron Conveyor Belt.It is a metal mesh belt with a special structure. It is woven by left and right spiral wires. It has a tight and strong structure. Its mesh holes are evenly arranged in a "herringbone" shape (also called "V" or "fishbone" shape). The edges can be welded, crimped or chain-reinforced to improve strength and stability.
This design gives it unique performance advantages and is widely used in industries that require high strength, high temperature resistance and stable transportation. It is usually made of stainless steel (such as stainless steel 314, stainless steel 316L, stainless steel 304), heat-resistant steel or other alloy materials.
-
Flexible Rod Conveyor BeltsA Flexible Rod Belt is constructed from 3 components.
1. Alternating spirals take care of the belt overlay.
2. These spirals are connected to each other by means of smooth cross rods.
3. Special chain links are mounted at the outer sides, which are locked by means of button heads.
-
April 03, 2026The Indispensable Role of a Conveyor Belt System in Modern Construction ProjectsLook, I’ve spent the last 20 years knee-deep in dust and concrete on construction sites, and let me tell you, a reliable conveyor belt system isn't just a convenience, it's a backbone. We’re talking about moving materials efficiently, safely, and consistently. It’s the difference between a project that runs smoothly and one that spirals into costly delays. It’s a tool that impacts every single phase, from initial groundwork to the final finishing touches. -
March 25, 2026The Versatile Flat Flex Conveyor Belt for Efficient Material HandlingLet me tell you, after years on construction sites, knee-deep in dust and dealing with all sorts of conveyor headaches, a good, reliable system is worth its weight in gold. We’re talking about moving materials – everything from aggregates to finished goods – and time is absolutely money. That’s where the Flat Flex Conveyor Belt comes in. It’s not just another piece of equipment; it’s a productivity booster, a safety enhancer, and frankly, a sanity saver. I’ve seen projects grind to a halt because of conveyor issues, and a robust, easily maintained system like this can prevent a lot of trouble. What I appreciate most, having spent countless hours troubleshooting on-site, is simplicity. Complicated systems mean more downtime and the need for specialized technicians. The beauty of a well-designed Flat Flex Conveyor Belt is its straightforward design. It's easy to install, even in tight spaces, and maintenance is minimal. -
March 20, 2026Engineered For Precision Driving Your Success With ReliabilityWe specialize in the manufacture of high-quality balanced spiral conveyor belts, delivering exceptional performance and durability for a wide range of industrial applications. Our balanced spiral conveyor belts are renowned for their superior strength, stability, and longevity. We are a leading manufacturer serving diverse industries worldwide. As a premier manufacturer, we’ve established ourselves as a trusted source for high-performance balanced spiral conveyor belts. Our commitment to innovation and quality ensures that our belts consistently exceed customer expectations in demanding applications. Our technology offers unparalleled performance and efficiency. -
April 09, 2026Industrial Mesh Belt Guide for Production Line EfficiencyIn the world of industrial processing, the efficiency of your production line often depends on the smallest components. A high-quality mesh belt serves as the backbone for countless operations, from food baking and pharmaceutical processing to heavy-duty metal heat treatment. Choosing the right belt material and weave can mean the difference between seamless operation and costly downtime. This comprehensive guide will walk you through everything you need to know about selecting, maintaining, and optimizing your conveyor systems to ensure maximum productivity and longevity. -
November 01, 2025Is The Mesh Belt Of The Heat Treatment Normalizing Furnace Prone To Hydrogen Embrittlement? What Causes This?Key Considerations for Oil Pipeline Construction Worldwide3
-
January 01, 2026What Are The Advantages Of Choosing A Photovoltaic Panel Pyrolysis Furnace Mesh Belt From Jiaoyang Products?In the photovoltaic panel debris recycling industry, the stability of the pyrolysis furnace mesh belt affects production efficiency.
-
March 16, 2026Corrosion Resistant Mesh Belt SolutionsEngineered for durability, efficiency, and reliability in corrosive environments. Serving industries worldwide. Our corrosion resistant mesh belt solutions are at the forefront of materials science, offering exceptional resistance to acids, alkalis, and other corrosive agents. These belts are crucial for maintaining process integrity and minimizing downtime. We leverage advanced weaving techniques and specialized alloys to deliver superior performance, extended service life, and reduced total cost of ownership. -
March 10, 2026Comprehensive Guide to Stainless Steel Wire Mesh Belt Applications and SelectionStainless Steel Wire Mesh Belt: A Comprehensive Guide I […]
Get Your Custom Solution
Facing challenges with high-temperature conveying? Contact us now.
Our engineers will provide you with expert product consultation and tailored solutions.
Sign up
for our Newsletter
Subscribe to the weekly newsletter for all the latest updates
