Double Balanced Weave Conveyor Belt
Double Balanced Weave Conveyor Belt
Contact Us Now >
Download
Double Wire Wrap Construction – Enhanced durability with interlocking spiral design
Reinforced Mesh Pattern – Uniform openings for optimal airflow
Double Wire Edge Reinforcement– Prevents unraveling
Product Description

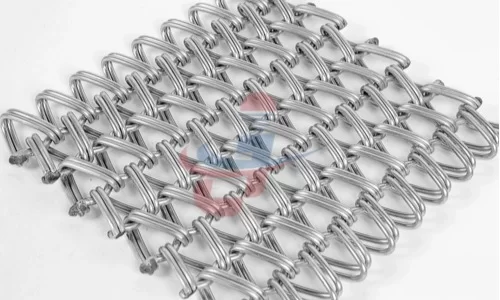

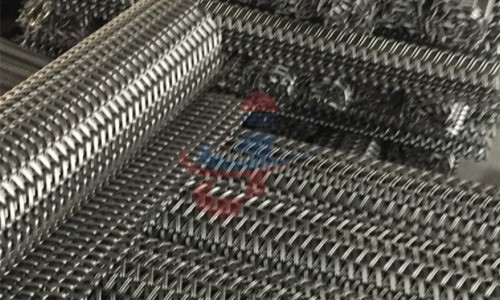

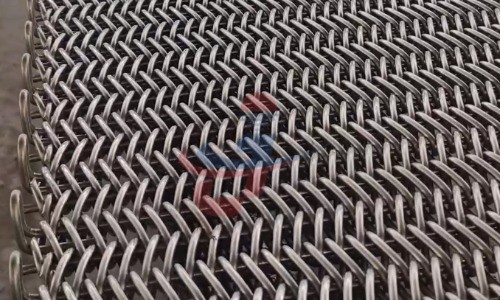

This mesh belt is constructed using two interwoven metal wires, combining left-handed and right-handed spiral wires to form a tight and durable mesh structure. During the winding process, the wires are cross-fixed, ensuring a firm and stable design.
Key Features:
✅ High Tensile Strength – The double-wound wire structure enhances durability and load-bearing capacity.
✅ Reinforced Edges – Can be turned up to prevent material slippage and improve operational stability.
✅ Stable Performance – Designed for heavy-duty applications with reliable long-term use.
Recommended Applications:
• Heat treatment furnaces
• Powder coating processes
• Glass tempering lines
• Food processing under high temperatures
• Heavy industrial material handling
-
