Honeycomb Conveyor Belts
Honeycomb Conveyor Belts
Contact Us Now >
Download
Stable Operation

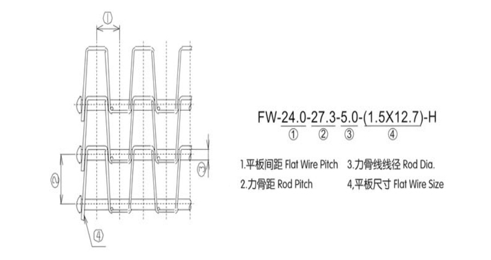

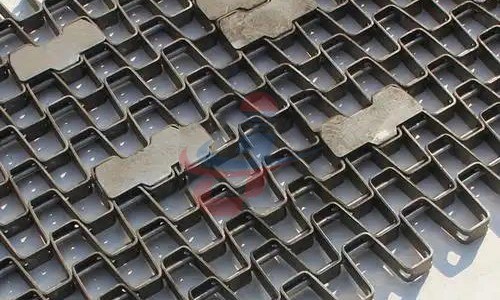

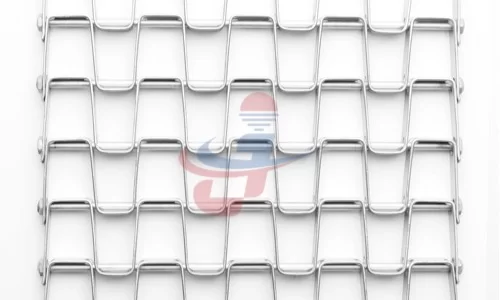

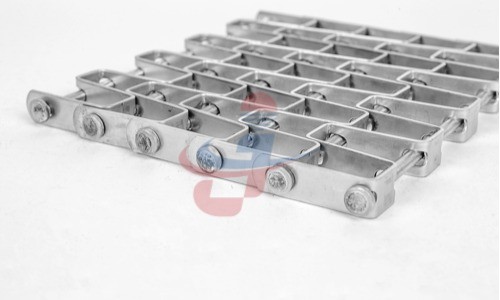

Metal Flat Wire Conveyor Belts: Also known as Honeycomb Conveyor Belts.Made of support shaft and metal sheet, the two ends of the support shaft are welded, and the two ends of some specific specifications can be made into lock edges, edge baffles and transverse baffles. The mesh holes are arranged in regular rectangles or squares, and the structure is uniform.
The main materials of the Great Wall Mesh Belt are carbon steel, galvanized steel, stainless steel 304 and stainless steel 316, and the operation is stable.
Material Options
Carbon Steel – Economical option for general use
Galvanized Steel – Enhanced corrosion resistance
304 Stainless Steel – Food-grade and chemical resistant
316 Stainless Steel – Superior acid and saltwater resistance
Structural Features
Support shafts welded at both ends
Optional lock edges or baffles
Uniform rectangular/square openings
Custom widths and lengths available
Application scenarios

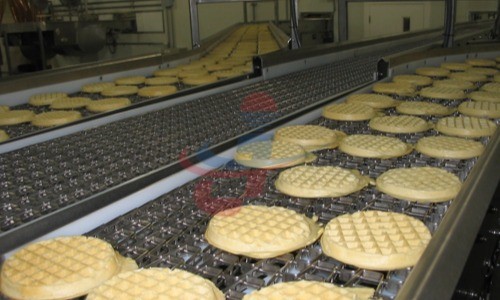

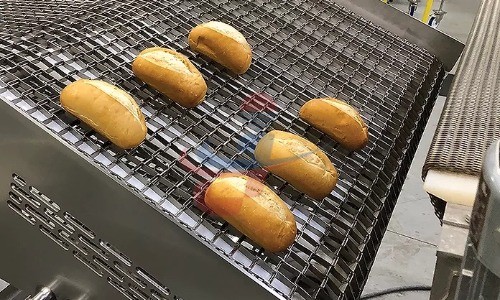

Food processing industry: used for cooling equipment, drying equipment, bread production equipment, product processing equipment, etc.
Pharmaceutical industry: used for drug drying, sterilization and other production lines
Building materials industry: used for drying gypsum boards and cement products.
Automotive industry: used for parts heat treatment and coating production lines.
-
Compound Weave Conveyor BeltsCompound Weave Conveyor Belt, also named Stainless Steel Cordweave Conveyor Belt, Compound Balanced Woven Belt，V-shaped Conveyor Belt or Baking Band Conveyor Belt, have right-hand and left-hand spirals interconnecting by straight cross rods.
The compound belt is a high-density, balanced spiral belt with multiple spirals and cross rods per pitch, resulting in minimal apertures and a flat surface. This structure ensures a close and flat mesh, ideal for conveying very small items. Its uniform heat transfer and smooth surface make it perfect for applications like biscuit baking and sorting small mechanical components. Popular for its durability and efficiency, the compound weave is a top choice in various industries, including food processing and precision manufacturing.
-
Self-Stacking Spiral Freezer BeltsSelf-Stacking Spiral Freezer BeltsSelf-Stacking Spiral Freezer Belts are innovative conveyor solutions designed specifically for use in spiral freezers. With a unique stacking mechanism that eliminates the need for external support, these belts help maximize vertical space, reduce energy consumption, and improve overall freezing efficiency.
Engineered for high-performance food processing environments, these belts offer superior product handling, longer service life, and minimal maintenance — all while maintaining food quality and system hygiene.
-
Flexible Rod Conveyor BeltsA Flexible Rod Belt is constructed from 3 components.
1. Alternating spirals take care of the belt overlay.
2. These spirals are connected to each other by means of smooth cross rods.
3. Special chain links are mounted at the outer sides, which are locked by means of button heads.
-

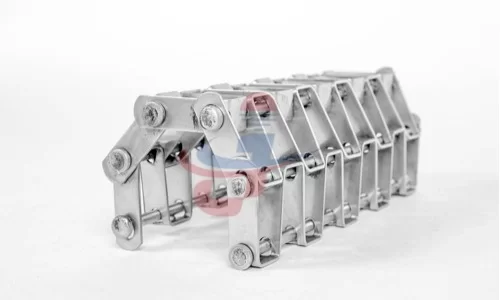

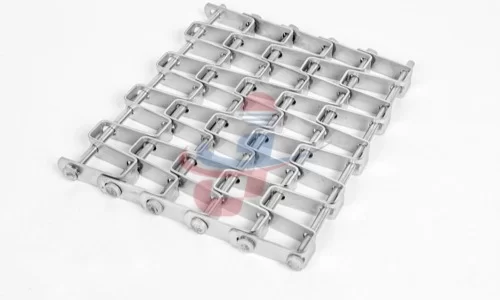

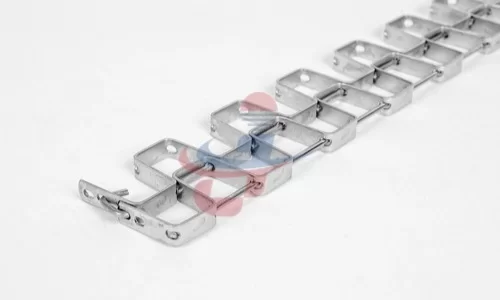

Chain LinksChains links are important components and accessories in the whole conveyor belt system. They are used combined with sprockets as a drive system to ensure stable and smooth conveying and transmitting. We can supply all kinds of chain links for you.
-
Ladder Conveyor BeltsLadder Conveyor Belt is a simple but effective style of conveyor belt, generally used belt for common processes and common product loads. Its open design provides efficient operation with minimum maintenance as well as facilitating easy and thorough cleaning. Its lightweight and basic configuration make it a very economic and cost-effective style of belting for many different environments. The ladder belts are used in production processes with temperatures of -100ºC to +450ºC in food and other industries.
-
Plate Link Conveyor BeltsPlate Link Conveyor Belt is very strong, driven by stainless steel chain, made of stainless steel plate, and very suited to heavy load applications, running smoothly in the conveying process, easy to install and replace, and long in service life. Its self-supporting structure makes it be used over large widths without any support. PFM Screen’s Plate Link belt features an extremely robust design and high load capacity, making it the perfect choice for arduous engineering processes such as presswork, die-casting and forging.
-
Chain Driven Conveyor BeltsStainless steel chain link belt with precision-driven rollers
-
Balanced Spiral Woven Conveyor BeltsBalanced Weave Conveyor Belts are also known as spiral wire link conveyor belts, is the most commonly used belt for wire mesh conveyor belts.
PFM Screen’ Balanced Weave Conveyor Belts have been successfully used in the food industry, the heat treatment industry, the chemical industry and the glass industry, etc. Its simple design, the big range of dimensions (wire diameters and pitches) and the various ranges of belt materials are the main reason for its success.
-
