This kind of stainless steel wire mesh belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.
Rod and spiral alternating coils structure efficiently improve production and reduce downtime. Owing for robust construction, this rod conveyor belting need far less maintenance. Besides, Flexible Rod belts can also be supplied with a link in the centre of the belt width to decrease its turning radii, as well as side guards to prevent product spillage.
Flexible Rod Conveyor Belt Installation Instructions
Features of Flexible Rod Conveyor Belt
• Smooth and burr-free. The finish is smooth and burr-free for quick and easy cleaning, maximizing production.
• High temperature resistance. The stainless steel material can maintain the perfect performance even in the extremely high or low temperature applications.
• Corrosion and rust resistance. The stainless steel material and galvanized steel have excellent chemical stability, which are corrosion and rust resistance.
• Durable and long service life. The high quality material and rigid structure can ensure the long lifespan of the flexible rod conveyor belt.
• Easy to install and replace. The flexible rod conveyor belt is lightweight and easy to install and replace.
• U-shaped links can be added on the center of conveyor belt. To decrease turning radii and improve conveying efficiency, the U-shaped conveyor belt are added onto the center of the conveyor belt.
• Side guards are available. Side guards can be added on both side of the conveyor belt to prevent products from spillage.
• No mesh cover. Maximum ventilation, suitable for cooling large loaves
Edge Availability
Flexible Rod Belt edge has different types, which can be standard U-shaped link and U-shaped link edge with reinforced rod. they're all solid and sturdy. you can choose them according to your applications and products you want to convey.

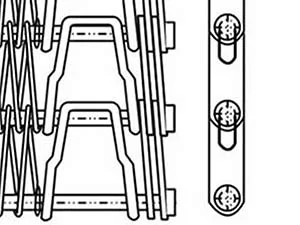

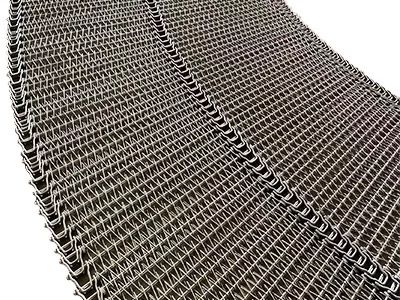

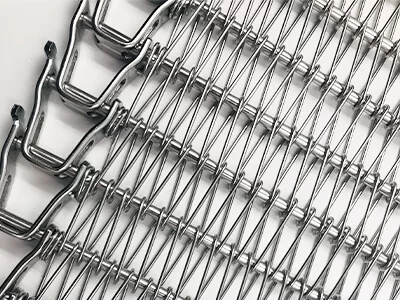

Flexible Rod Belt with standard U-shaped link edge

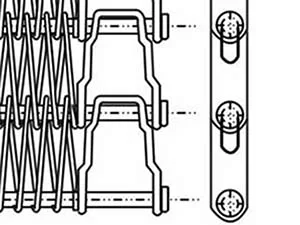

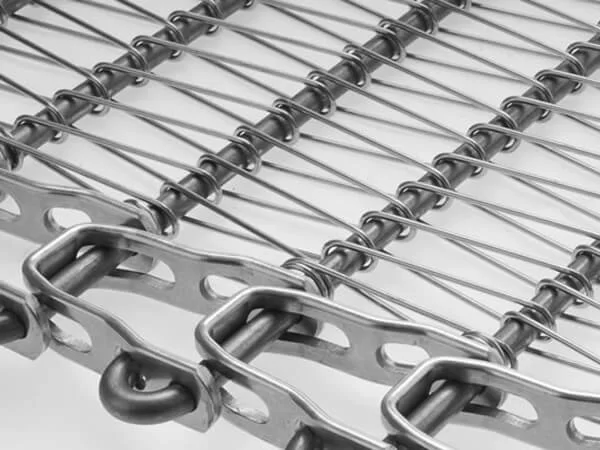

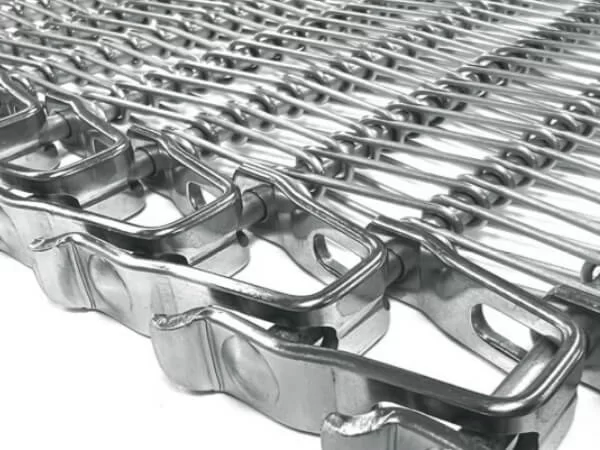

Flexible Rod Belt with standard U-shaped link and reinforced plate
Material Availability
Material: carbon steel, SS 201, SS 304, SS 316, SS 316L
Material | Maximum Wire Operating Temperature °C |
Carbon Steel | 550 |
201 Stainless Steel | 600 |
304 Stainless Steel | 750 |
316 Stainless Steel | 800 |
316L Stainless Steel | 800 |
Specifications

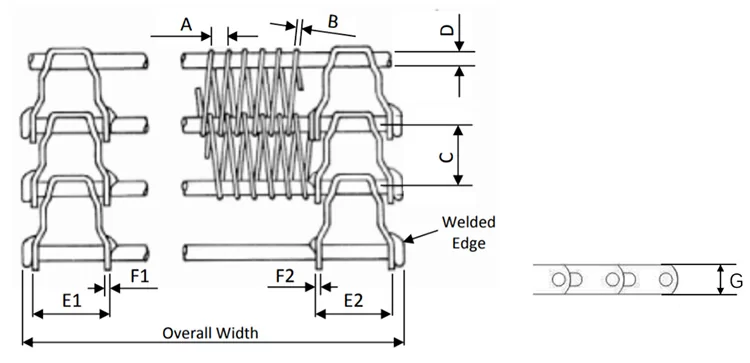

Standard Radius Metal Belt with a link at both sides
A: Spiral Coil Pitch (mm) B: Coil Wire Diameter (mm)
C: Cross Rod Pitch (mm) D: Cross Rod Diameter (mm)
E: Edge Links Width (mm) E1 E2 F: Edge Links Thickness (mm) F1 F2
G: Edge Links height (mm)
| Specifications of Flexible Rod Conveyor Belt wiht standard & heavy duty links | |
| Technical Specifications | Popular Value |
| Coil Wire Diameter | 1.2mm, 1.4mm, 1.5mm, 1.6mm, 1.7mm, 2.0mm |
| Cross Rod Diameter | 4.9mm, 5.0mm, 5.9mm, 6.0mm |
| Edge Links Height | 11.1mm, 12.7mm, 15mm |
| Cross Rod Pitch | 19.05mm, 25.4mm, 27.4mm, 30mm, 30.5mm, 38.1mm |
| Available Widths: Curve/Spiral | 304.8-1371.6 mm |
| Available Widths: Straight Run | 304.8-1524 mm |
| Turn Ratio | 1.6-2.5 |
| Method of Drive | Sprocket driven on links |
| NOTE: Custom specification is available if you can't find the suitable size. | |

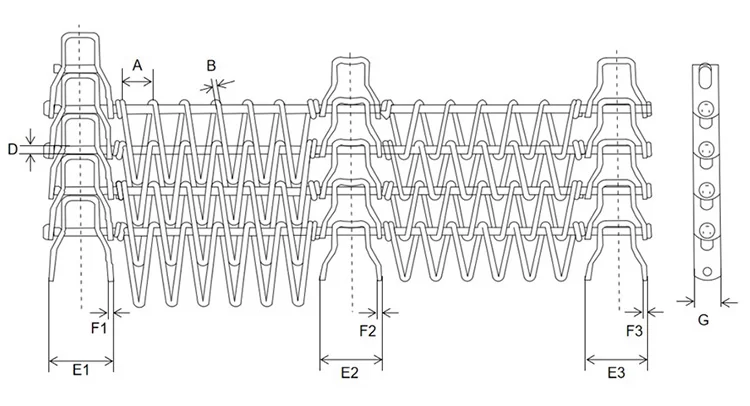

Radius Metal Belt with a extra link in the middle to fit a smaller turning radius
A: Spiral Coil Pitch (mm) B: Coil Wire Diameter (mm)
C: Cross Rod Pitch (mm) D: Cross Rod Diameter (mm)
E: Edge Links Width (mm) E1 E2 F: Edge Links Thickness (mm) F1 F2
G: Edge Links height (mm)
| Specifications of Flexible Rod Conveyor Belt with link in the middle | |
| Technical Specifications | Popular Value |
| Coil Wire Diameter | 1.2mm, 1.4mm, 1.5mm, 1.6mm, 2.0mm |
| Cross Rod Diameter | 4.9mm, 5.0mm, 5.9mm, 6.0mm |
| Edge Links Height | 11.1mm, 12.7mm, 15mm |
| Cross Rod Pitch | 19.1mm, 27.4mm |
| Available Widths | 305-1219 mm |
| Turn Ratio | 0.8-2.1 |
| Method of Drive | Sprocket driven on links |
| NOTE: Custom specification is available if you can't find the suitable size. | |
The Flexible Rod Belt is a versatile conveyor belt. This belt has been developed for a variety of applications, constructions and process conditions. Whether used on spiral or straight conveyors, the Flexible Rod Belt is particularly suitable for cooking, cooling or freezing products such as bread, pastry, vegetables, potatoes, fish and meat. It can also be used for blanching vegetables, proofing dough, drying, baking or pasteurising. Belts are used in concentric systems, spiral towers, curved and straight conveyors.
● Spiral Freezer Belt
● Spiral Cooler Belt
● Spiral Proofer Belt
● Spiral Dryer Belt
● Spiral Cooker Belt
● Spiral Heating Belt
● Turn Curve Transfer Belt
● Transfer and Packaging Belts

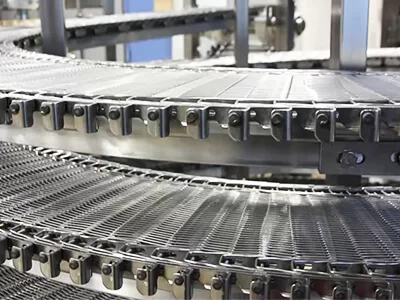

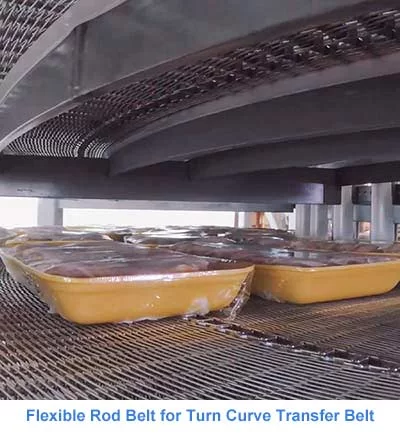

Flexible Rod Belt for Turn Curve Transfer Belt

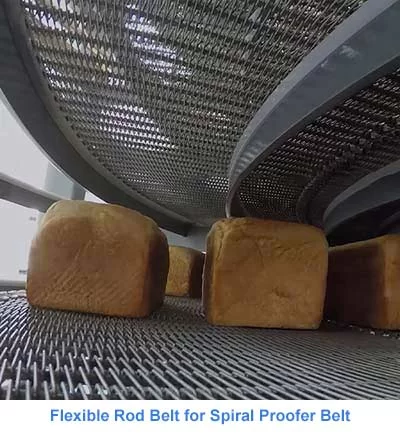

Flexible Rod Belt for Spiral Proofer Belt

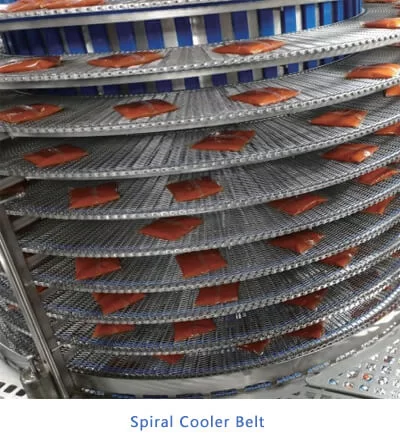

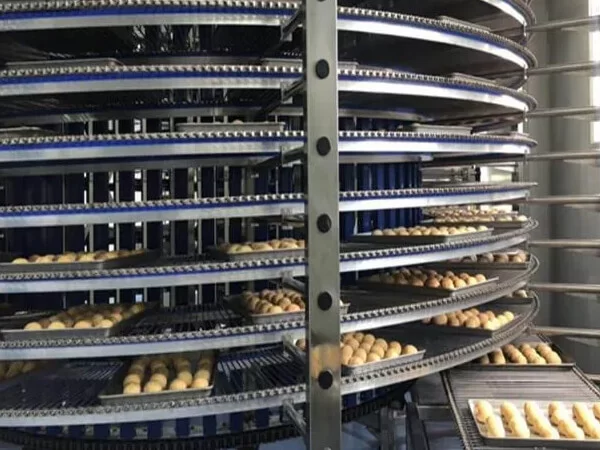

Spiral Cooler Belt

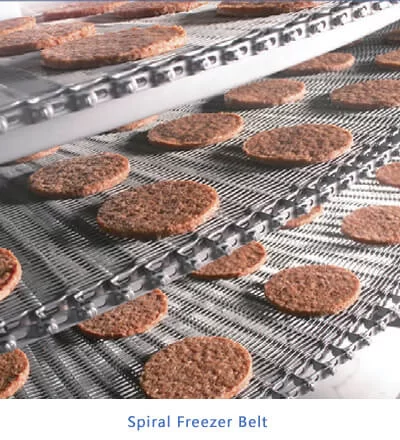

Spiral Freezer Belt

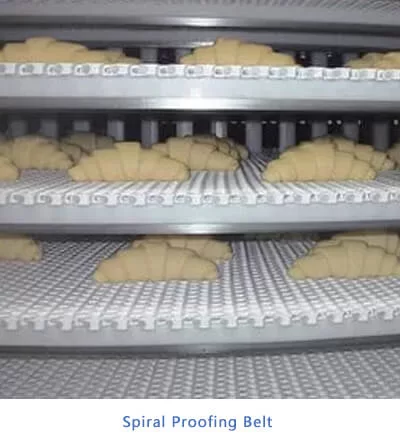

Spiral Proofing Belt
-
