The Ladder belt with S-hooks run in straight applications but can also be executed as curved belts with a fixed inside radius. A belt variation with a tapered rod pitch assembly can be used in radial applications (90 and 180 degrees).
Ladder Conveyor Belt Advantages:
• Flat uniform surface for gentle product handling
• High tensile rods which resist permanent distortion and reduce down-time
• Positive drive to ensure there are no tracking issues
• Smooth edges for easy movement around radial bends
• Easy belt assembly and disassembly due to its simple open construction.
Belt Types

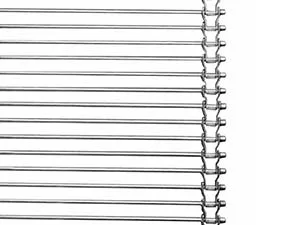

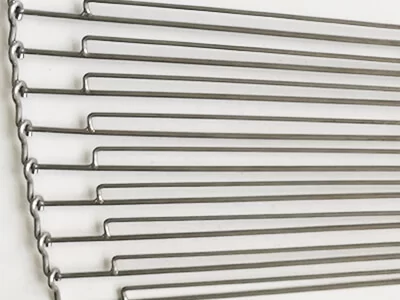

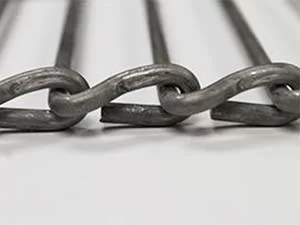

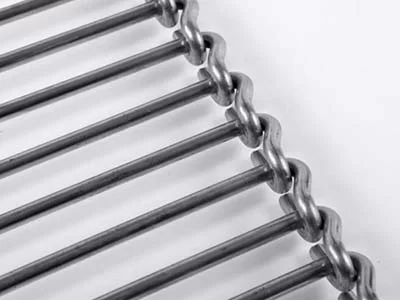

Ladder belt with S-shaped hooks
These belts run in straight applications but can also be executed as curved belts with a fixed inside radius, available in right hand (clockwise) or left hand (ant-clockwise) arrangement. Standard belts are supplied for either 90° or 180° conveyor angle of operation.

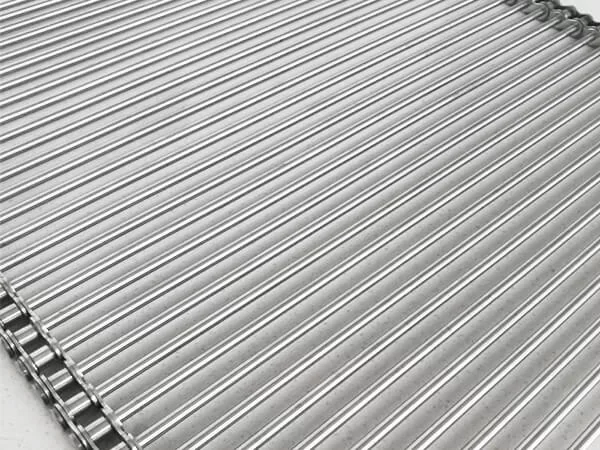

Ladder belt with U-shaped links
These belts can run in straight and curved applications, available in right hand (clockwise) or left hand (ant-clockwise) arrangement. Standard belts are supplied for either 90° or 180° conveyor angle of operation.

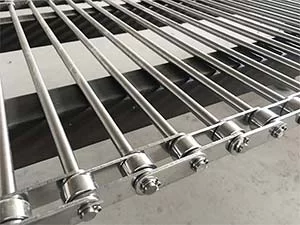

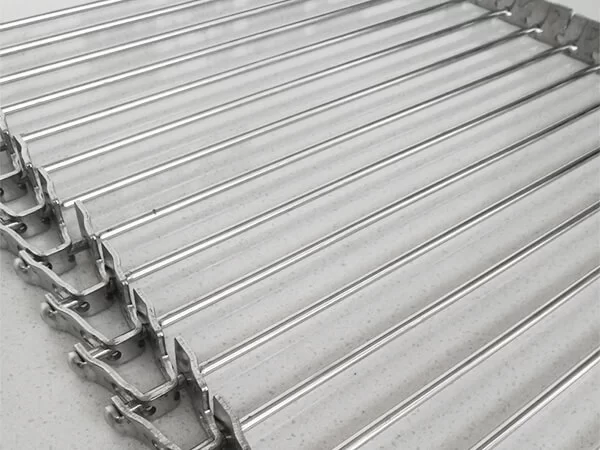

Ladder belt with chain links
These belts can be only running in straight applications.
Material Availability
The Ladder belt is standard made of steel, mid-tensile carbon steel, stainless steel 304 and 316. Other materials on demand.
Specifications

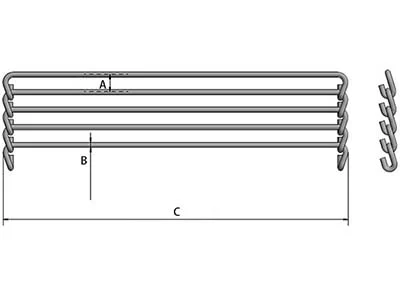

A: Pitch (mm) B: Rod diameter (mm) C: Overall Width (mm)
Specifications of Straight Running Ladder Belt | |||
Item No. | Pitch (mm) | Rod diameter (mm) | Maximum width (mm) |
SRLB01 | 12.7 | 3.66 | 762 |
SRLB02 | 15.87 | 4.47 | 914 |
SRLB03 | 19.05 | 4.88 | 914 |
SRLB04 | 25.4 | 4.88 | 914 |

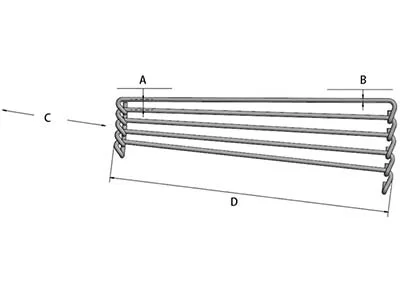

A: Pitch (mm) B: Rod diameter (mm) C: Inside Radius (mm) D: Overall Width (mm)
Specifications of Radial Ladder Belt | ||||
Item No. | Pitch (mm) | Rod diameter (mm) | Inside Radius (mm) | Available width (mm) |
RLB01 | 12.7 | 3.66 | 598.5 | 229/305/381/457/762 |
RLB02 | 15.87 | 4.47 | 762 | 305/381/457/610/762 |
Ladder belts are used in, for example:
● Cooling systems in for example bread & pastry industry.
● Belt in filtering installations

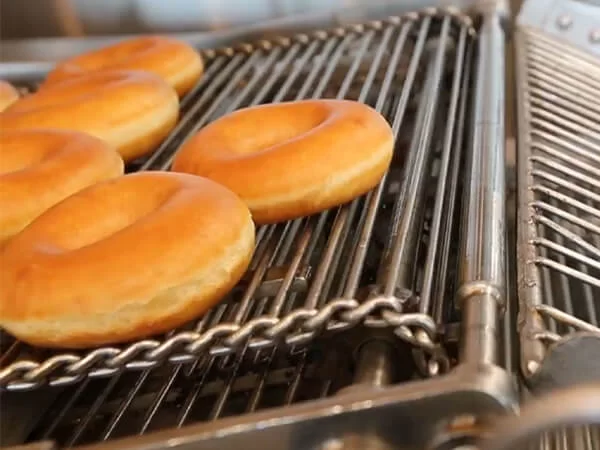

● Conveyor belt in installations for baking, frying, grilling, etc.
● When executed as a” batter-belt” (with bar links in order to strengthen and lateral chains)
● Washing systems
● Drying systems

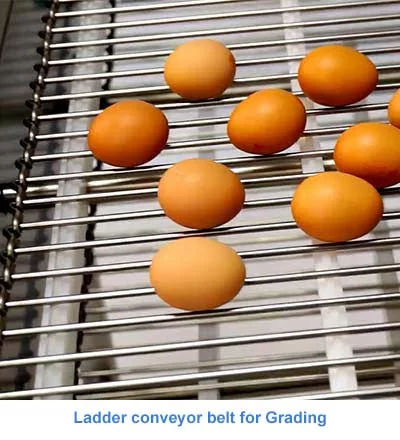

Ladder conveyor belt for Grading

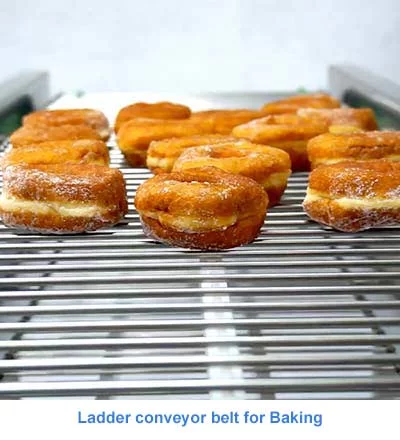

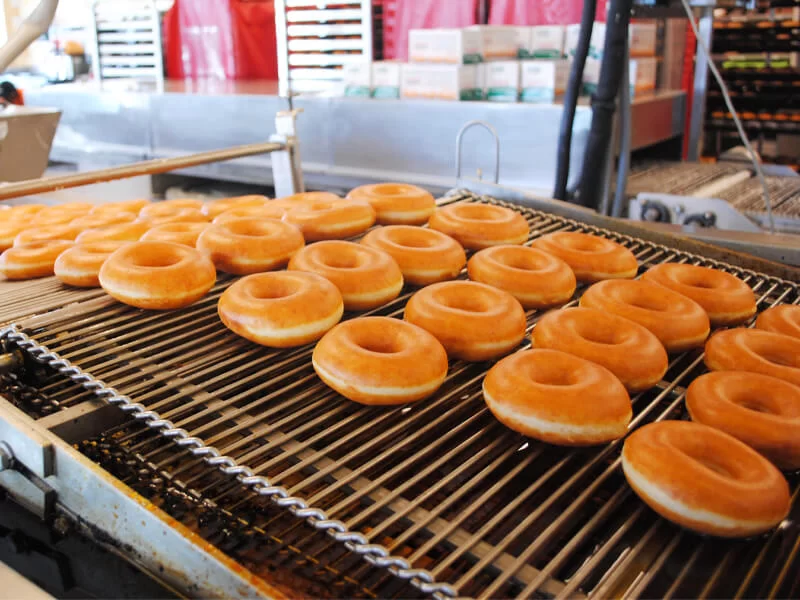

Ladder conveyor belt for Baking
-
